PPHT 200016-A2:2003
PPHT 200016-A2:2003

PPHT 200016-A2:2003

UGC DOR7156121
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.17 CAD - $75.17 CAD
$75.17 CAD
$75.17 CAD - $75.17 CAD
$75.17 CAD

Vendu en lots de : 10

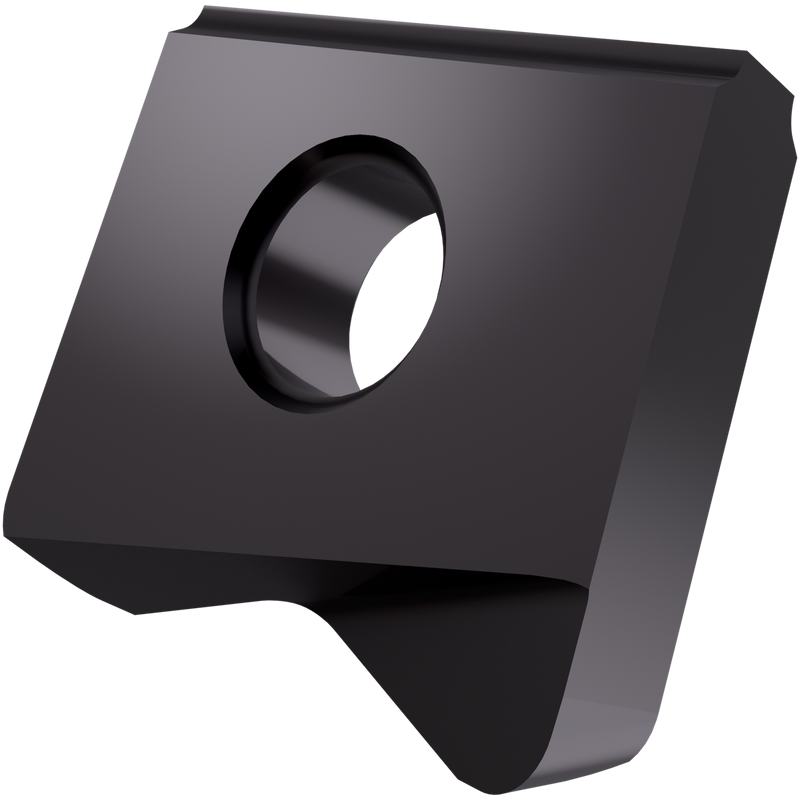

Insert de fraisage de copiage toroïdal d'un diamètre de 20 mm (.7874") et des rayons de coin de 1.6 mm (.063") pour une profondeur de coupe maximale de 1.6 mm (.063"), géométrie A2 et carbure WC-Co à grain fin avec revêtement PVD 2003 dans les gammes ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 200016-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156121
Product FamilyPPHT

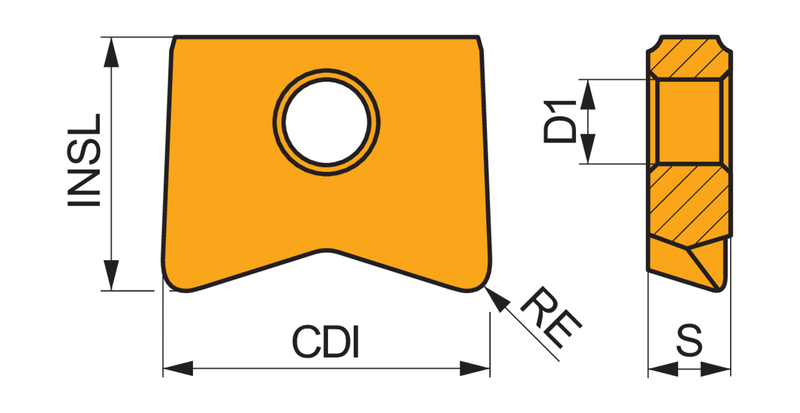

Insert Geometry
Insert DesignPPHT
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7156121
EAN3603603162778
File Type Download
PPHT 200016-A2:2003 — Line Drawing PDF Download
