PPHT 200040-A2:2003
PPHT 200040-A2:2003

PPHT 200040-A2:2003

UGC DOR7156123
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.17 CAD - $75.17 CAD
$75.17 CAD
$75.17 CAD - $75.17 CAD
$75.17 CAD

Vendu en lots de : 10

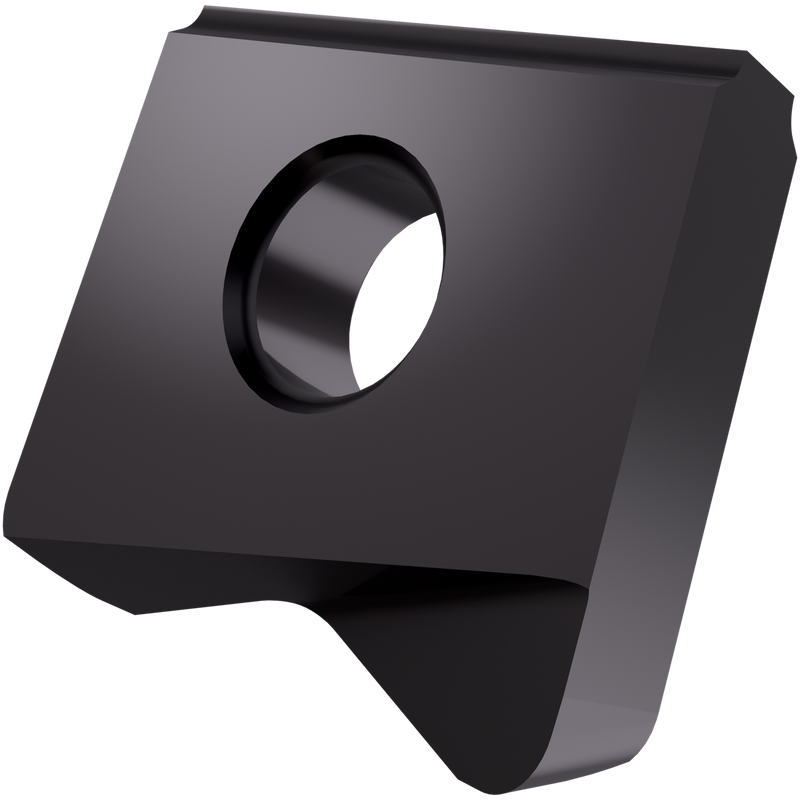

Plaquette toroïdale à copier d'un diamètre de 20 mm et avec un rayon de coin de 4 mm pour une profondeur de coupe maximale de 4 mm, géométrie A2 et carbure WC-Co à grains fins revêtu PVD 2003 dans les plages de nuances ISO P01-P10/K01-K10 et H05-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à copier K2-PPH

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PPHT 200040-A2:2003
Grade2003
Chipbreaker (CBMD)A2
Product Number7156123
Product FamilyPPHT
Insert Geometry
Insert DesignPVHT
Insert Shape Code (SC)P - pentagonal
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7156123
EAN3603603162792
File Type Download

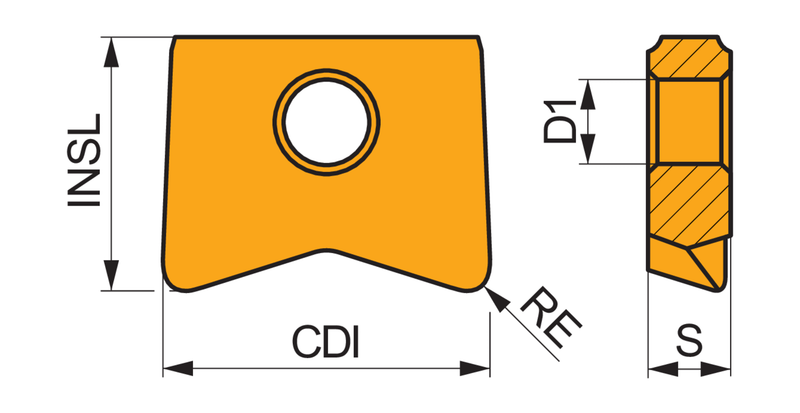

PPHT 200040-A2:2003 — Line Drawing PDF Download
