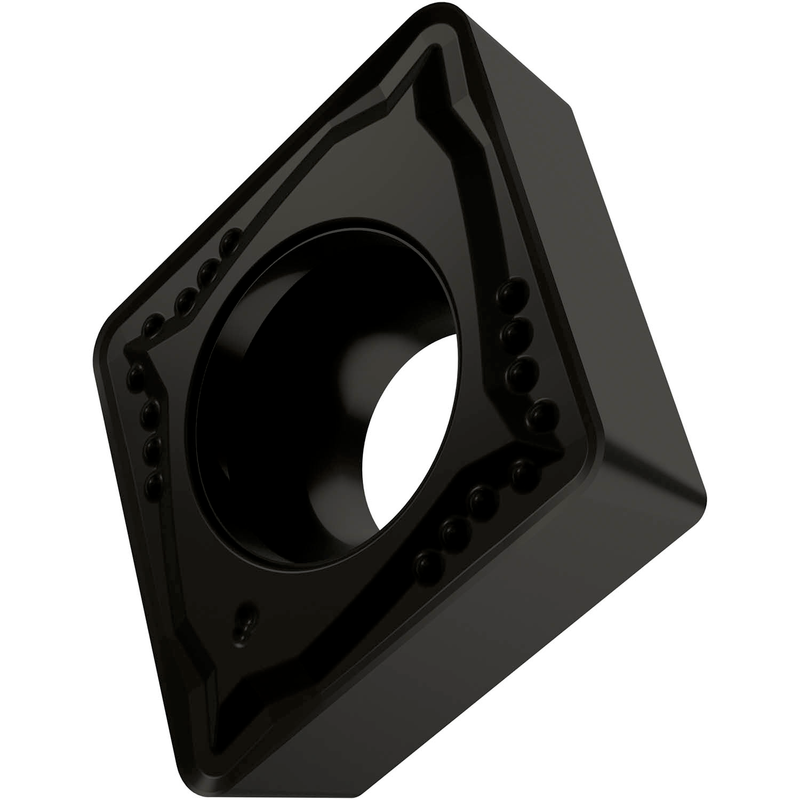

CCMT 32.52-FM:T7325
CCMT 32.52-FM:T7325

CCMT 32.52-FM:T7325

UGC DOR7156173
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de pointe 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel MT-CVD dans la gamme ISO M10-M25, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52-FM:T7325
Product Name (ISO)CCMT 09T308E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156173
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156173
EAN3603603162945
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
CCMT 32.52-FM:T7325 — Line Drawing PDF Download
