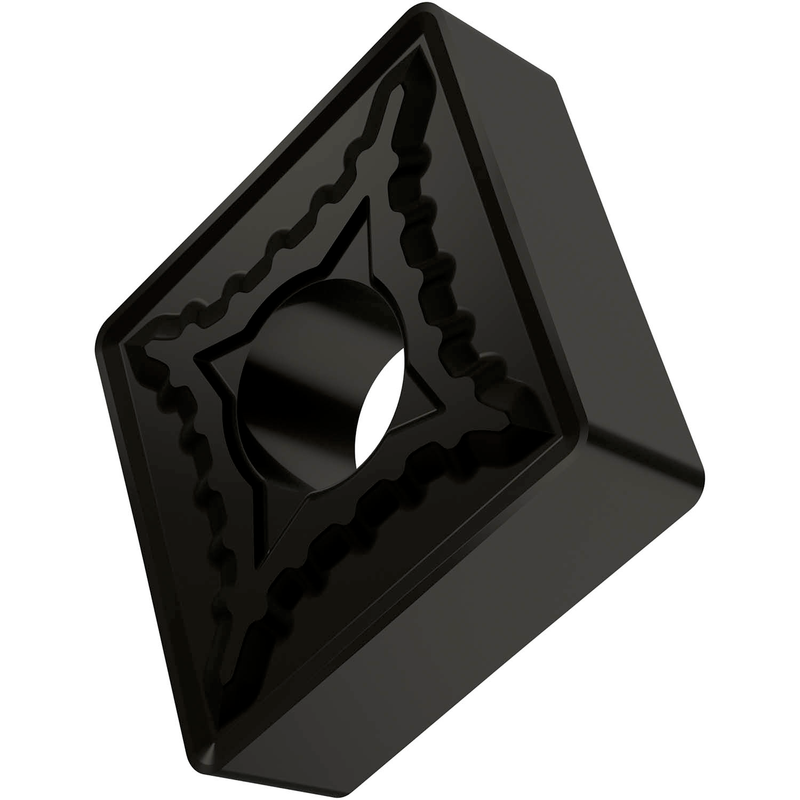

CNMG 432-SM:T7325
CNMG 432-SM:T7325

CNMG 432-SM:T7325

UGC DOR7156202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
47 In Stock - Motool Edmonton
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.64 CAD - $16.64 CAD
$16.64 CAD
$16.64 CAD - $16.64 CAD
$16.64 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage fin à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432-SM:T7325
Product Name (ISO)CNMG 120408E-SM:T7325
GradeT7325
Chipbreaker (CBMD)SM
Product Number7156202
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7156202
EAN3603603163232
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CNMG 432-SM:T7325 — 2D Model DXF Download
CNMG 432-SM:T7325 — Line Drawing PDF Download
