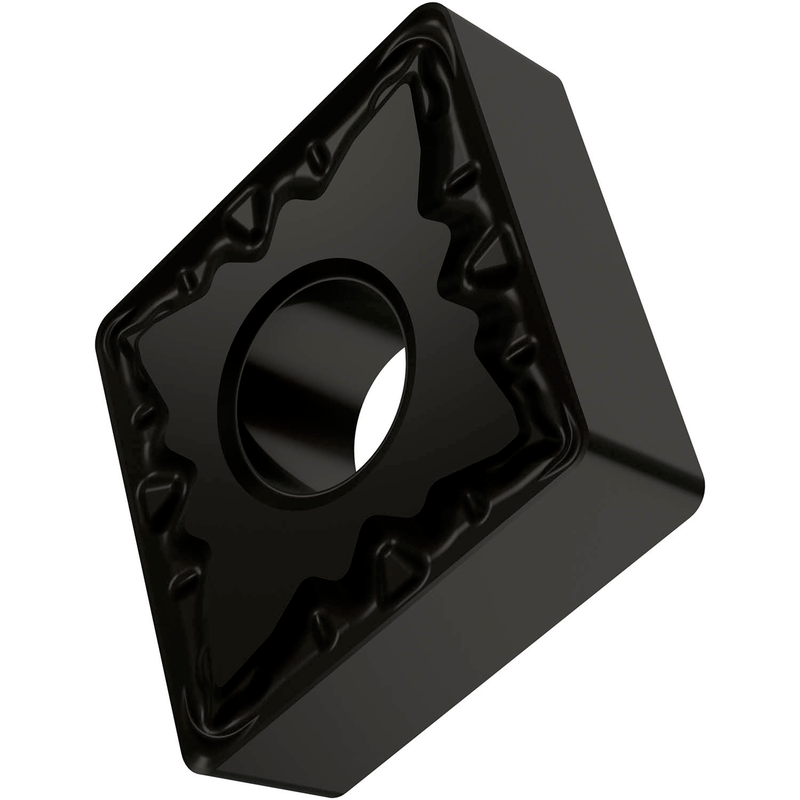

CNMG 433-FM:T7325
CNMG 433-FM:T7325

CNMG 433-FM:T7325

UGC DOR7156204
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette double face négative à 80° rhomboïde avec un diamètre de cercle inscrit de 1/2", une épaisseur de 3/16", un rayon de bec de 3/64" et une précision de positionnement conforme à la classe de tolérance ISO-M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à semi-finition

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433-FM:T7325
Product Name (ISO)CNMG 120412E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156204
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7156204
EAN3603603163256
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
CNMG 433-FM:T7325 — Line Drawing PDF Download
