CNMG 643-RM:T7325
CNMG 643-RM:T7325

CNMG 643-RM:T7325

UGC DOR7156227
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

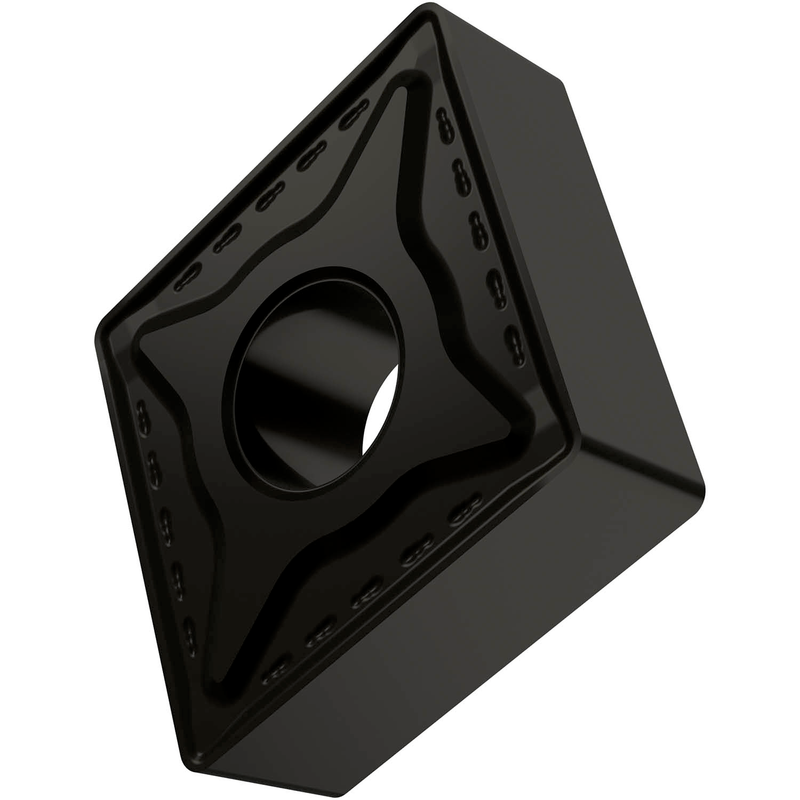

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO M10-M25, pour l'usinage moyen à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 643-RM:T7325
Product Name (ISO)CNMG 190612E-RM:T7325
GradeT7325
Chipbreaker (CBMD)RM
Product Number7156227
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle interne de 80° rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7156227
EAN3603603163485
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
