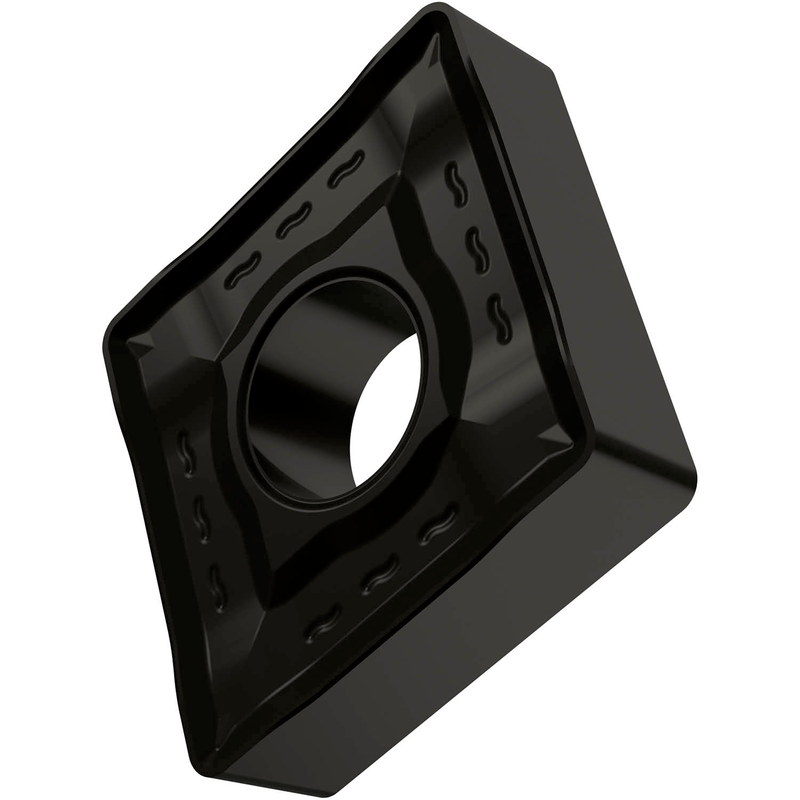

CNMM 432-NR2:T7325
CNMM 432-NR2:T7325

CNMM 432-NR2:T7325

UGC DOR7156233
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïdale 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NR2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10 - M25, pour l'usinage moyen à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 432-NR2:T7325
Product Name (ISO)CNMM 120408E-NR2:T7325
GradeT7325
Chipbreaker (CBMD)NR2
Product Number7156233
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.295"
Depth of Cut Max — mm (APMX)7.5 mm
Tool Information
Reference Numbers
EDP Number7156233
EAN3603603163546
File Type Download
CNMM 432-NR2:T7325 — Line Drawing PDF Download
