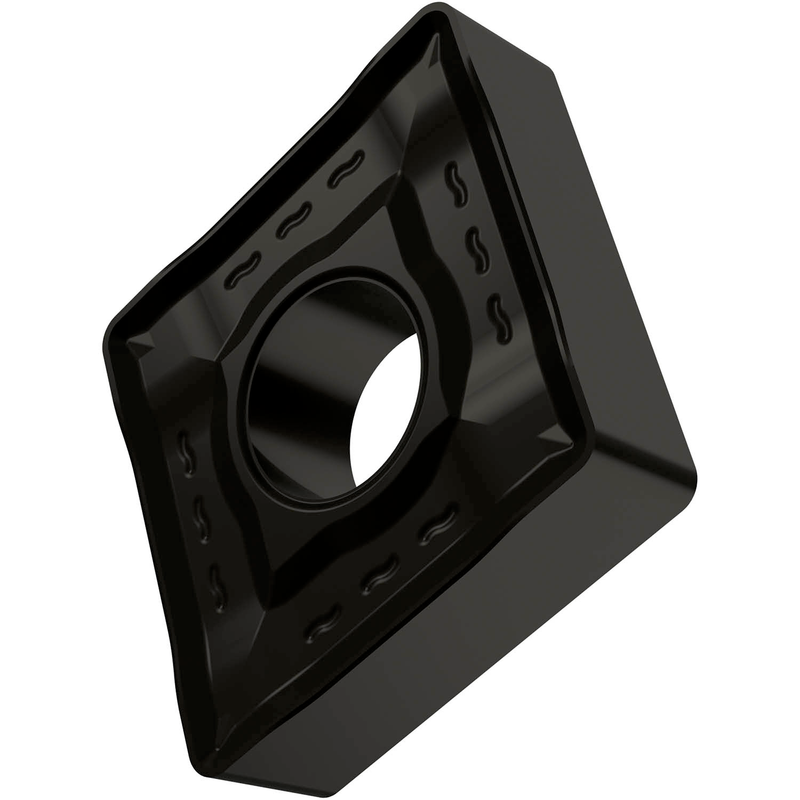

CNMM 644-NR2:T7325
CNMM 644-NR2:T7325

CNMM 644-NR2:T7325

UGC DOR7156240
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette double face négative à 80° rhomboïde avec un diamètre de cercle inscrit de 3/4", une épaisseur de 1/4", un rayon de bec de 1/16" et une précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NR2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10 - M25, pour l'usinage moyen à très lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 644-NR2:T7325
Product Name (ISO)CNMM 190616E-NR2:T7325
GradeT7325
Chipbreaker (CBMD)NR2
Product Number7156240
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7156240
EAN3603603163614
File Type Download
CNMM 644-NR2:T7325 — Line Drawing PDF Download
