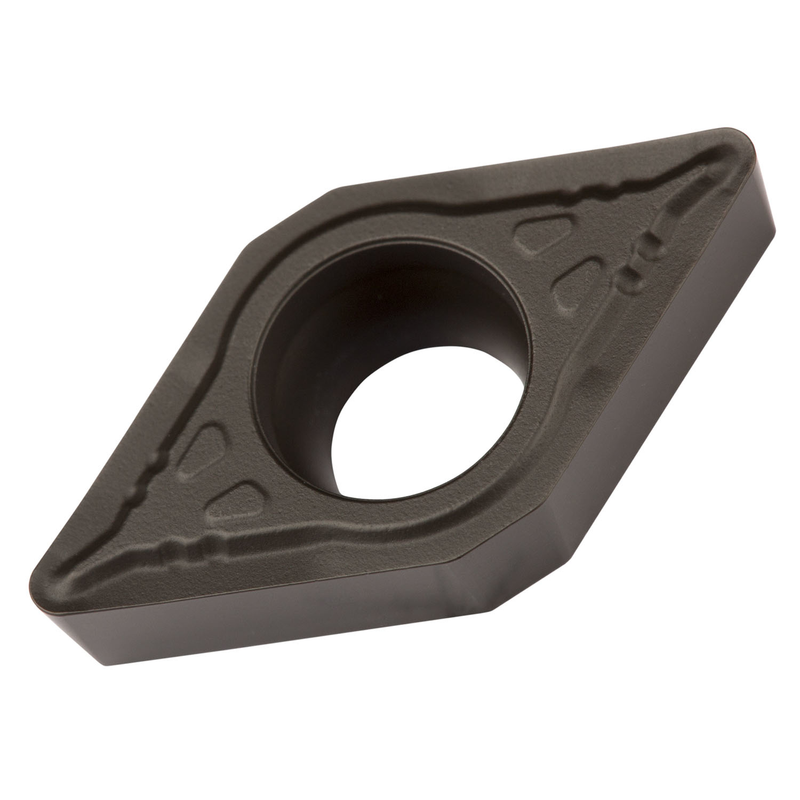

DCMT 21.50.5-UR:T7325
DCMT 21.50.5-UR:T7325

DCMT 21.50.5-UR:T7325

UGC DOR7156244
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.21 CAD - $12.21 CAD
$12.21 CAD
$12.21 CAD - $12.21 CAD
$12.21 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 55° avec dépouille de 7°, diamètre du cercle inscrit de 1/4", 3/32" d'épaisseur, rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à l'usinage lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.50.5-UR:T7325
Product Name (ISO)DCMT 070202E-UR:T7325
GradeT7325
Chipbreaker (CBMD)VOUS
Product Number7156244
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7156244
EAN3603603163652
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage possible
File Type Download
DCMT 21.50.5-UR:T7325 — Line Drawing PDF Download
