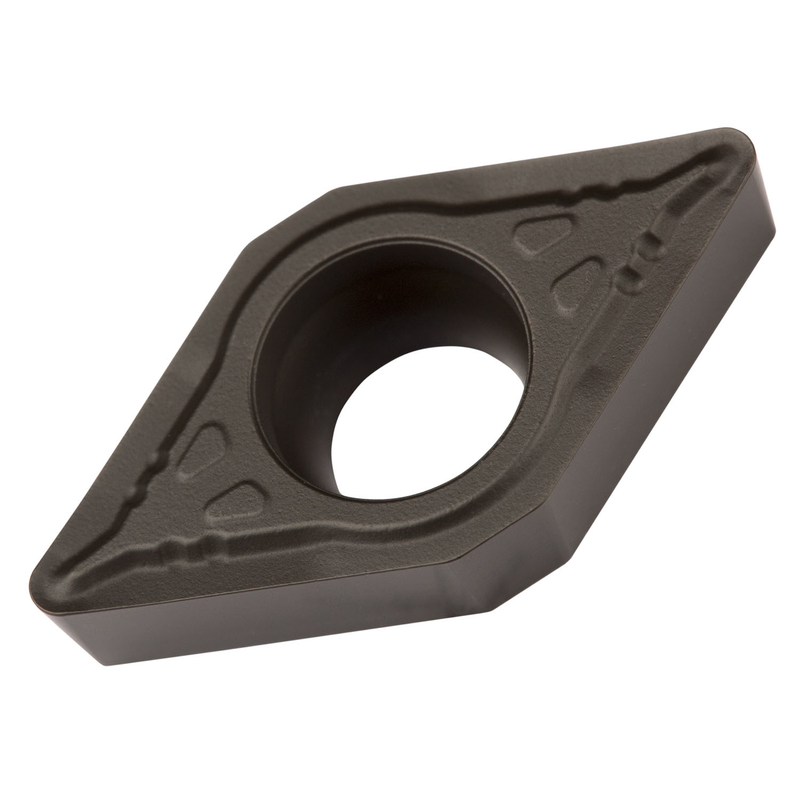

DCMT 32.50.5-UR:T7325
DCMT 32.50.5-UR:T7325

DCMT 32.50.5-UR:T7325

UGC DOR7156248
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.54 CAD - $19.54 CAD
$19.54 CAD
$19.54 CAD - $19.54 CAD
$19.54 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de pointe 1/128" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux UR, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.50.5-UR:T7325
Product Name (ISO)DCMT 11T302E-UR:T7325
GradeT7325
Chipbreaker (CBMD)VOUS
Product Number7156248
Product FamilyDCMT
Insert Geometry
Insert DesignSMCD
Insert Shape Code (SC)D - angle compris 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156248
EAN3603603163690
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
DCMT 32.50.5-UR:T7325 — Line Drawing PDF Download
