DNMG 441-FM:T7325
DNMG 441-FM:T7325

DNMG 441-FM:T7325

UGC DOR7156285
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.50 CAD - $26.50 CAD
$26.50 CAD
$26.50 CAD - $26.50 CAD
$26.50 CAD

Vendu en lots de : 10

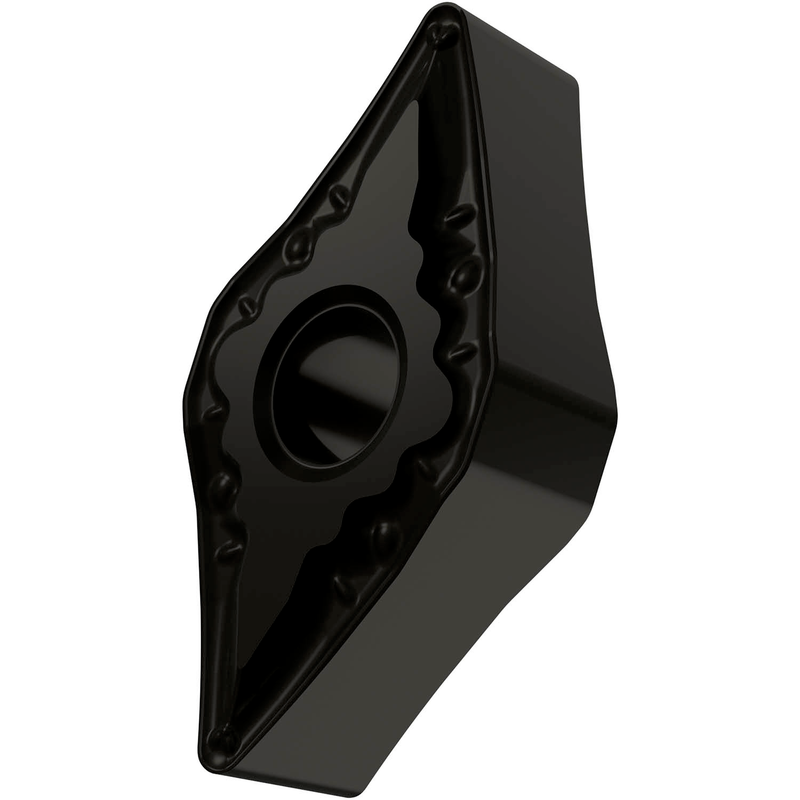

Plaquette de tournage négative double face, rhomboïde 55° avec diamètre du cercle inscrit de 1/2", 1/4" d'épaisseur, rayon de pointe de 1/64" et précision d'indexation selon la classe de tolérance ISO-M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à semi-finition

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441-FM:T7325
Product Name (ISO)DNMG 150604E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156285
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156285
EAN3603603164062
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
DNMG 441-FM:T7325 — Line Drawing PDF Download
