DNMG 441R-SI:T7325
DNMG 441R-SI:T7325

DNMG 441R-SI:T7325

UGC DOR7156290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

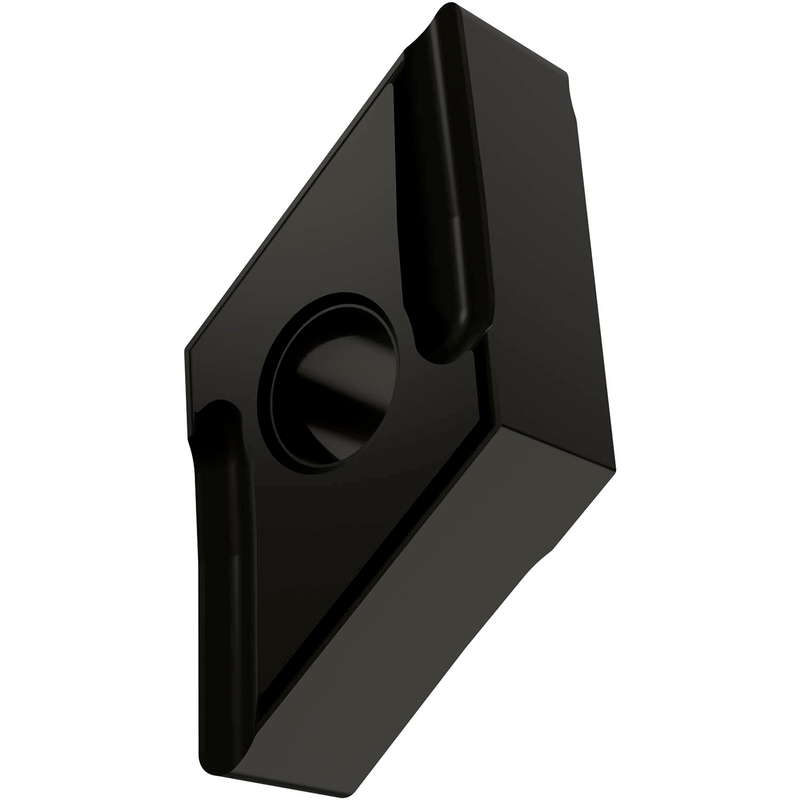

Plaquette de tournage négative double face, rhomboïde à 55° avec un diamètre de cercle inscrit de 1/2", 1/4" d'épaisseur, un rayon de bec de 1/64" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux SI, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10 - M25, pour l'usinage moyen à lourd des aciers inoxydables avec un outil de tournage à droite

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 441R-SI:T7325
Product Name (ISO)DNMG 150604ER-SI:T7325
GradeT7325
Chipbreaker (CBMD)Oui
Product Number7156290
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle inclus rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7156290
EAN3603603164116
File Type Download
DNMG 441R-SI:T7325 — Line Drawing PDF Download
