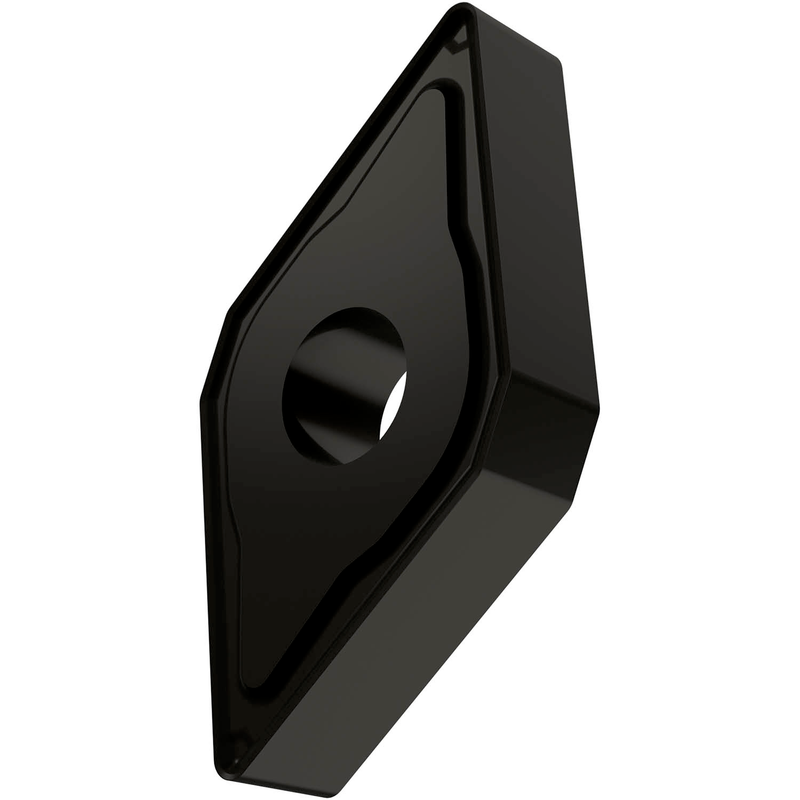

DNMG 442-NM:T7325
DNMG 442-NM:T7325

DNMG 442-NM:T7325

UGC DOR7156296
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec cercle inscrit de 1/2", épaisseur de 1/4", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux NM, en nuance T7325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage de finition à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 442-NM:T7325
Product Name (ISO)DNMG 150608E-NM:T7325
GradeT7325
Chipbreaker (CBMD)NM
Product Number7156296
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle de 55° inclus rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156296
EAN3603603164178
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
DNMG 442-NM:T7325 — Line Drawing PDF Download
