RCMT 0803MOE-FM:T7325
RCMT 0803MOE-FM:T7325

RCMT 0803MOE-FM:T7325

UGC DOR7156317
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.04 CAD - $11.04 CAD
$11.04 CAD
$11.04 CAD - $11.04 CAD
$11.04 CAD

Vendu en lots de : 10

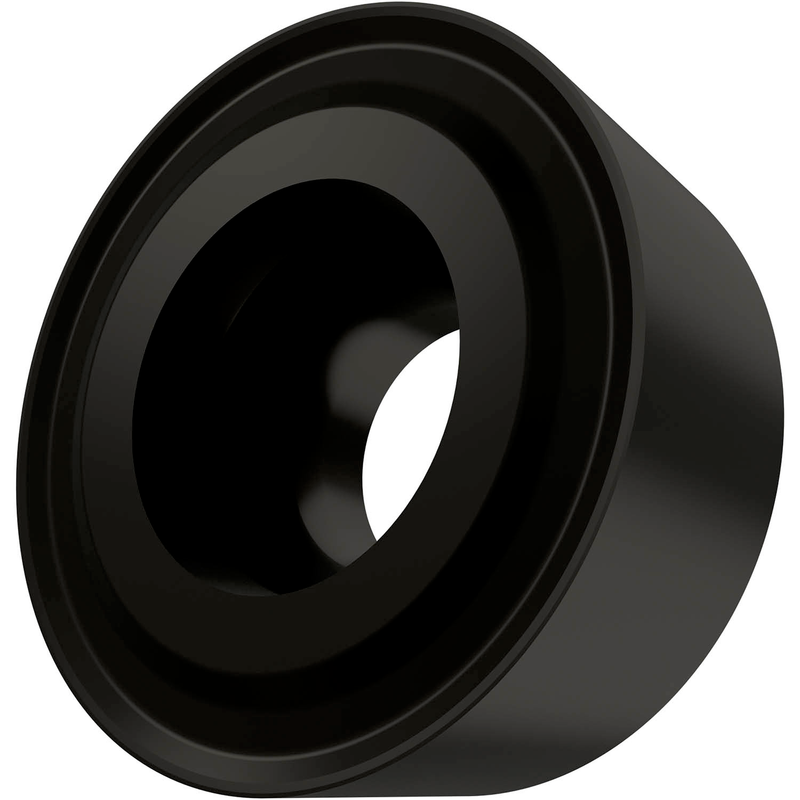

Plaquette positive simple face, ronde avec un angle de dépouille de 7°, un diamètre de 8 mm, une épaisseur de 3,18 mm, une précision d'indexation selon la classe de tolérance ISO-M, un brise-copeaux FM avec des arêtes de coupe arrondies, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour l'usinage de finition à moyen d'aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 0803MOE-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156317
Product FamilyGRCT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156317
EAN3603603164383
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
RCMT 0803MOE-FM:T7325 — 3D Model STP Download
RCMT 0803MOE-FM:T7325 — Line Drawing PDF Download
