RCMT 10T3MOE-FM:T7325
RCMT 10T3MOE-FM:T7325

RCMT 10T3MOE-FM:T7325

UGC DOR7156319
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

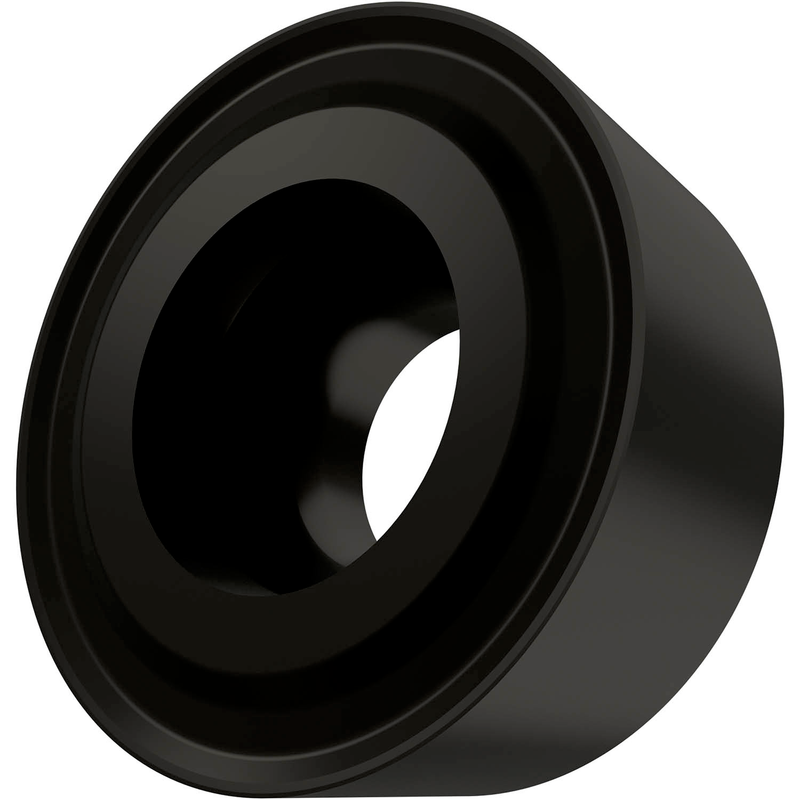

Plaquette de tournage positive simple face, ronde, avec dépouille de 7°, un diamètre de 10mm, 3,97mm d'épaisseur, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO M10-M25, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156319
Product FamilyGRMC
Insert Geometry
Insert DesignCRTM
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7156319
EAN3603603164406
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
RCMT 10T3MOE-FM:T7325 — Line Drawing PDF Download
