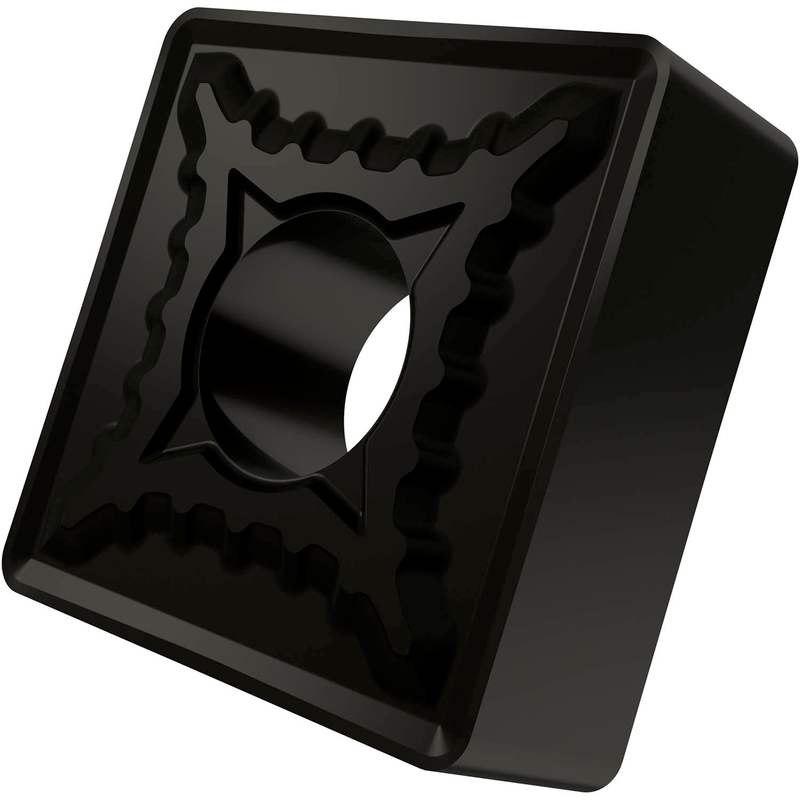

SNMG 643-SM:T7325
SNMG 643-SM:T7325

SNMG 643-SM:T7325

UGC DOR7156353
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.29 CAD - $29.29 CAD
$29.29 CAD
$29.29 CAD - $29.29 CAD
$29.29 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, carrée avec un cercle inscrit de 3/4" de diamètre, 1/4" d'épaisseur, un rayon de bec de 3/64" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans les plages ISO M10-M25 et S10-S25, pour l'usinage fin à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 643-SM:T7325
Product Name (ISO)SNMG 190612E-SM:T7325
GradeT7325
Chipbreaker (CBMD)SM
Product Number7156353
Product FamilyGSMN
Insert Geometry
Insert DesignGMEN
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.217"
Depth of Cut Max — mm (APMX)5.5 mm
Tool Information
Reference Numbers
EDP Number7156353
EAN3603603164741
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNMG 643-SM:T7325 — Line Drawing PDF Download
