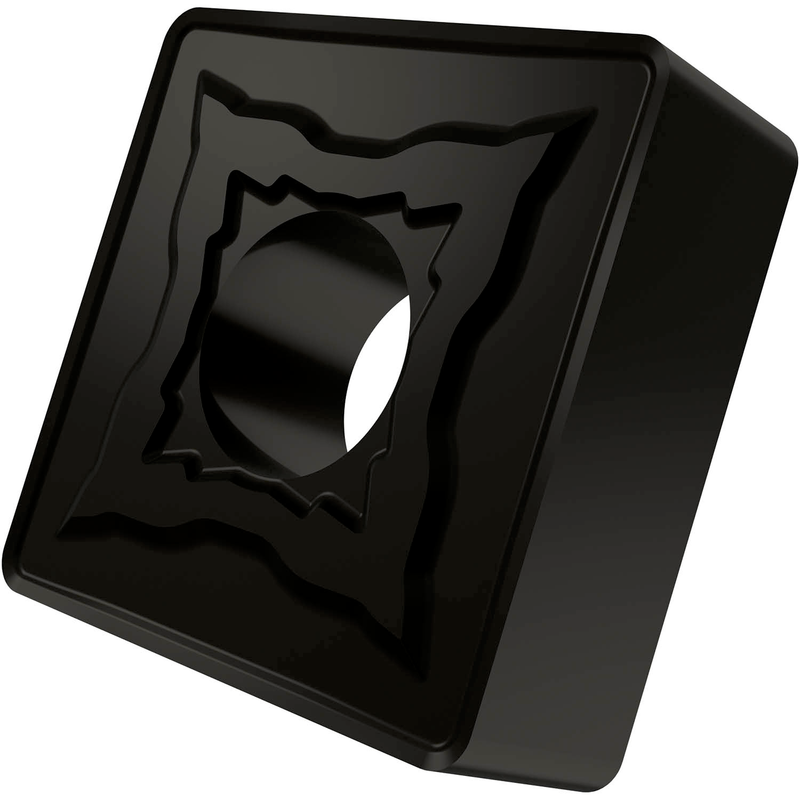

SNMG 644-NMR:T7325
SNMG 644-NMR:T7325

SNMG 644-NMR:T7325

UGC DOR7156354
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.29 CAD - $29.29 CAD
$29.29 CAD
$29.29 CAD - $29.29 CAD
$29.29 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, un rayon de bec de 1/16" et une précision d'indexation selon la classe de tolérance ISO M, brise-copeaux NMR, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10 - M25 et S10 - S25, pour l'usinage de finition à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 644-NMR:T7325
Product Name (ISO)SNMG 190616E-NMR:T7325
GradeT7325
Chipbreaker (CBMD)RMN
Product Number7156354
Product FamilyGNBS
Insert Geometry
Insert DesignMNPG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7156354
EAN3603603164758
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
SNMG 644-NMR:T7325 — Line Drawing PDF Download
