TCMT 21.52-FM:T7325
TCMT 21.52-FM:T7325

TCMT 21.52-FM:T7325

UGC DOR7156371
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.21 CAD - $11.21 CAD
$11.21 CAD
$11.21 CAD - $11.21 CAD
$11.21 CAD

Vendu en lots de : 10

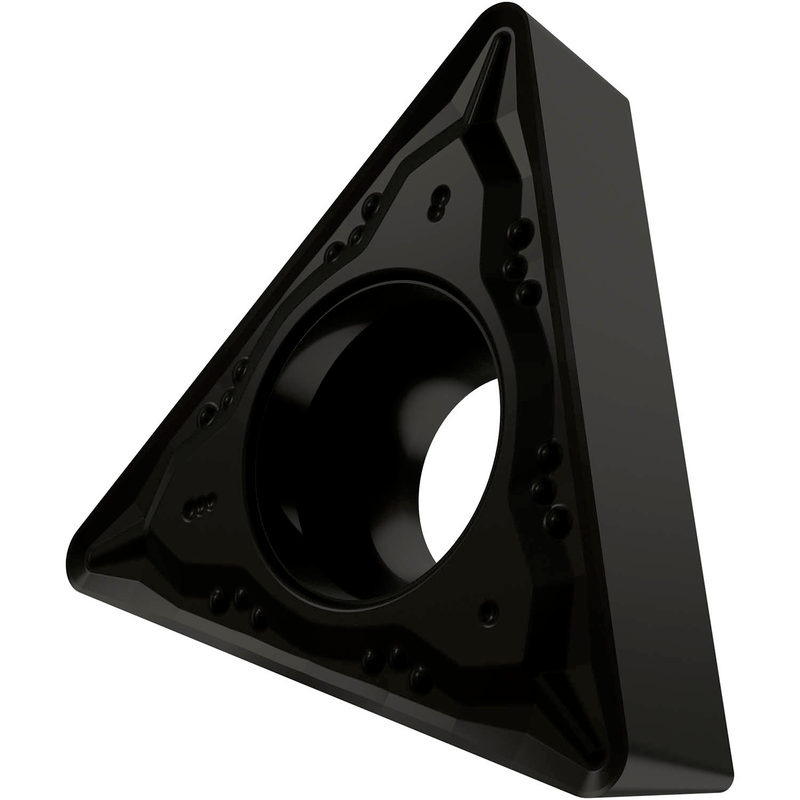

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour l'usinage de finition à moyen d'aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21.52-FM:T7325
Product Name (ISO)TCMT 110208E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156371
Product FamilyCMTC

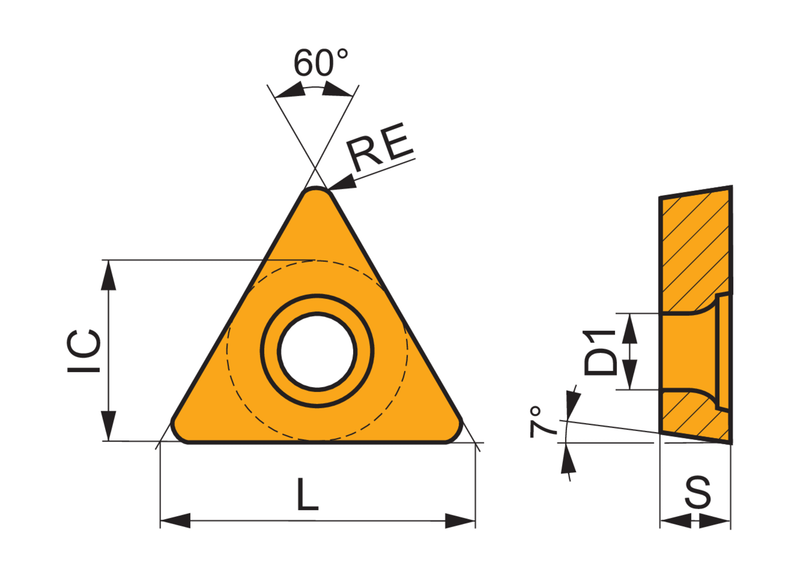

Insert Geometry
Insert DesignCMCT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156371
EAN3603603164925
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
TCMT 21.52-FM:T7325 — 2D Model DXF Download
TCMT 21.52-FM:T7325 — Line Drawing PDF Download
