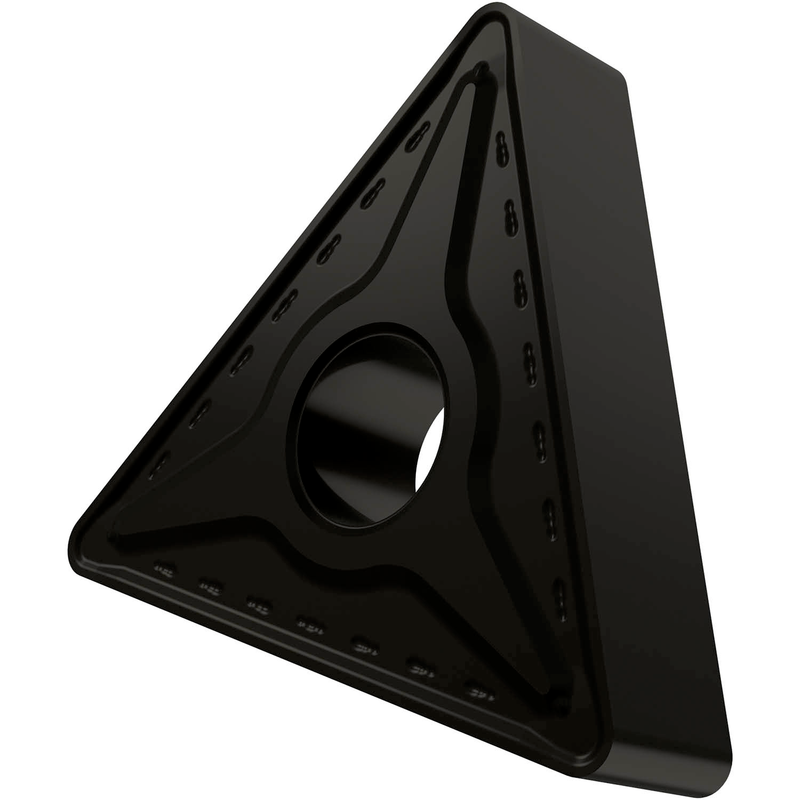

TNMG 332-RM:T7325
TNMG 332-RM:T7325

TNMG 332-RM:T7325

UGC DOR7156389
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.64 CAD - $11.64 CAD
$11.64 CAD
$11.64 CAD - $11.64 CAD
$11.64 CAD

Vendu en lots de : 10

Plaquette négative double face à géométrie triangulaire avec un diamètre de cercle inscrit de 9,525 mm (3/8"), 4,7625 mm (3/16") d'épaisseur, un rayon de bec de 0,79375 mm (1/32") et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T7325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la plage ISO M10-M25, pour l'usinage moyen à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 332-RM:T7325
Product Name (ISO)TNMG 160408E-RM:T7325
GradeT7325
Chipbreaker (CBMD)RM
Product Number7156389
Product FamilyCNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.209"
Depth of Cut Max — mm (APMX)5.3 mm
Tool Information
Reference Numbers
EDP Number7156389
EAN3603603165106
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage possible
File Type Download
TNMG 332-RM:T7325 — Line Drawing PDF Download
