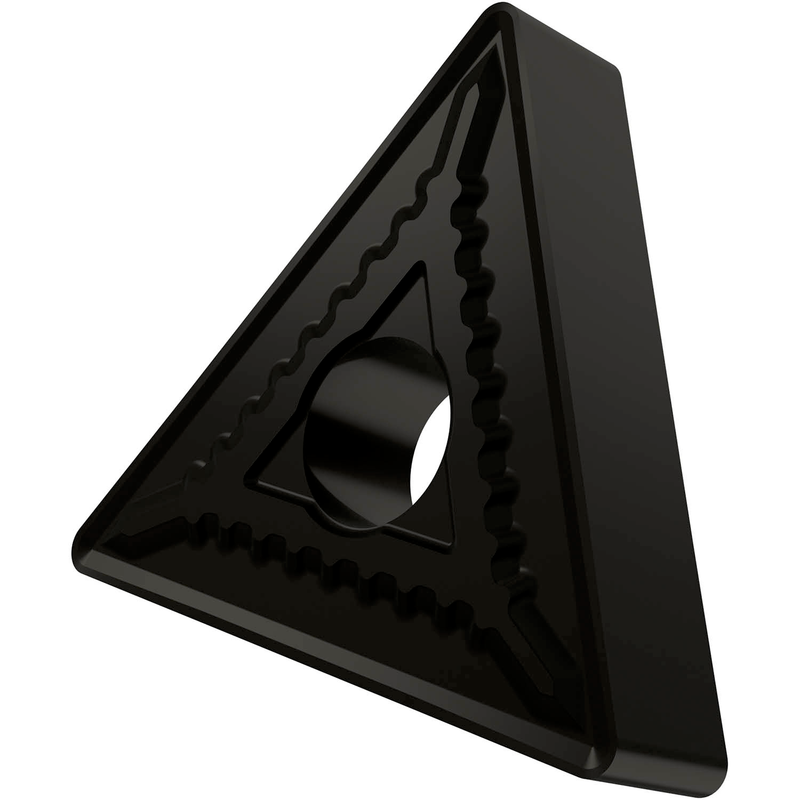

TNMG 433-SM:T7325
TNMG 433-SM:T7325

TNMG 433-SM:T7325

UGC DOR7156405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, triangulaire avec un diamètre de cercle inscrit de 1/2", 3/16" d'épaisseur, rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage fin à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)TNMG 433-SM:T7325
Product Name (ISO)TNMG 220412E-SM:T7325
GradeT7325
Chipbreaker (CBMD)SM
Product Number7156405
Product FamilyTNMG
Insert Geometry
Insert DesignGTNM
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7156405
EAN3603603165267
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
TNMG 433-SM:T7325 — Line Drawing PDF Download
