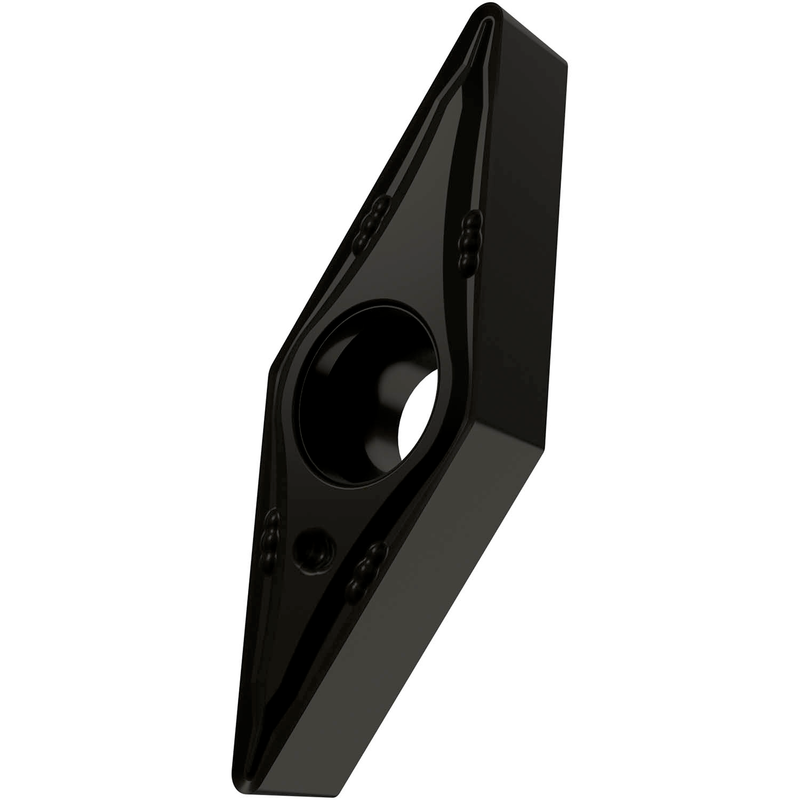

VBMT 222-FM:T7325
VBMT 222-FM:T7325

VBMT 222-FM:T7325

UGC DOR7156415
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.97 CAD - $20.97 CAD
$20.97 CAD
$20.97 CAD - $20.97 CAD
$20.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 5°, diamètre du cercle inscrit de 1/4", épaisseur de 1/8", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 222-FM:T7325
Product Name (ISO)VBMT 110308E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156415
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156415
EAN3603603165366
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
VBMT 222-FM:T7325 — Line Drawing PDF Download
