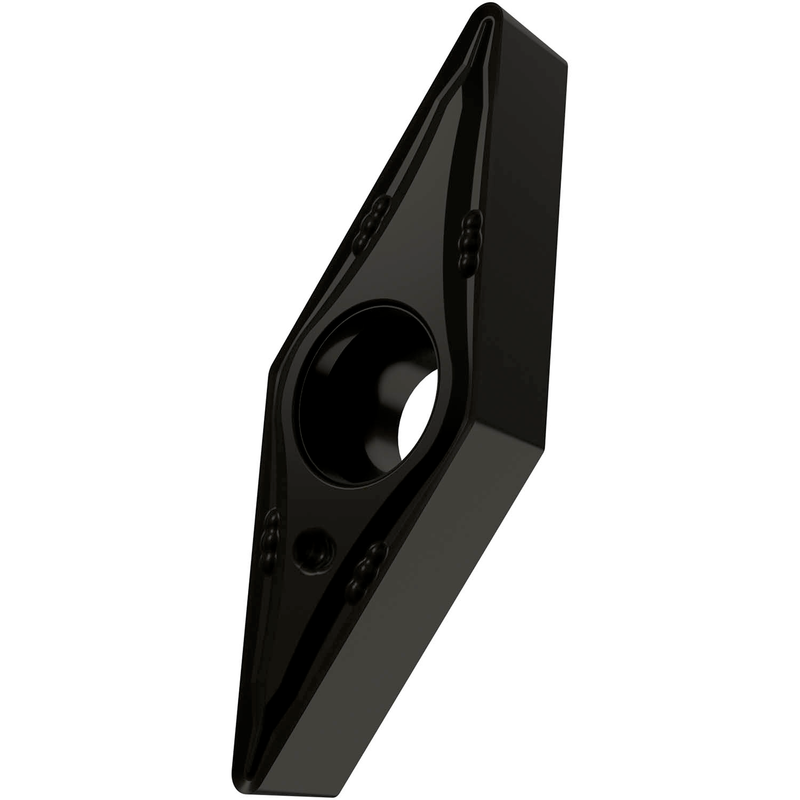

VBMT 330.5-FM:T7325
VBMT 330.5-FM:T7325

VBMT 330.5-FM:T7325

UGC DOR7156416
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.69 CAD - $23.69 CAD
$23.69 CAD
$23.69 CAD - $23.69 CAD
$23.69 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO M10-M25, pour l'usinage de finition à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 330.5-FM:T7325
Product Name (ISO)VBMT 160402E-FM:T7325
GradeT7325
Chipbreaker (CBMD)FM
Product Number7156416
Product FamilyVBMT
Insert Geometry
Insert DesignBVTM
Insert Shape Code (SC)V - angulaire 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156416
EAN3603603165373
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
File Type Download
VBMT 330.5-FM:T7325 — Line Drawing PDF Download
