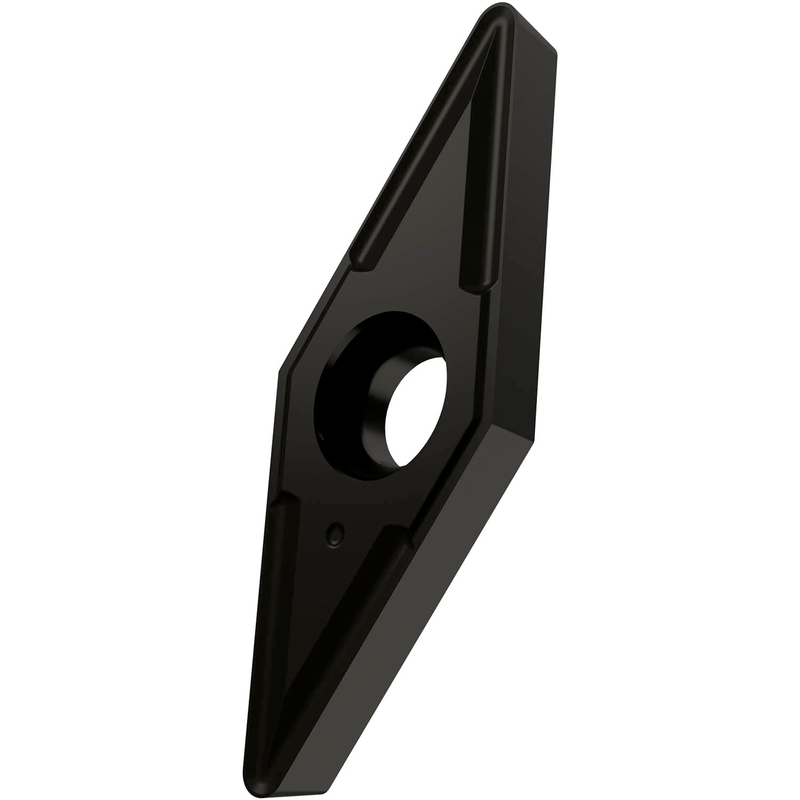

VCGT 2.520.5-NF2:T7325
VCGT 2.520.5-NF2:T7325

VCGT 2.520.5-NF2:T7325

UGC DOR7156423
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.76 CAD - $20.76 CAD
$20.76 CAD
$20.76 CAD - $20.76 CAD
$20.76 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance T7325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans les plages ISO M10 - M25 et S10 - S25, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5-NF2:T7325
Product Name (ISO)VCGT 130302E-NF2:T7325
GradeT7325
Chipbreaker (CBMD)NF2
Product Number7156423
Product FamilyTVGP
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle inclus de 35° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number7156423
EAN3603603165441
File Type Download
VCGT 2.520.5-NF2:T7325 — Line Drawing PDF Download
