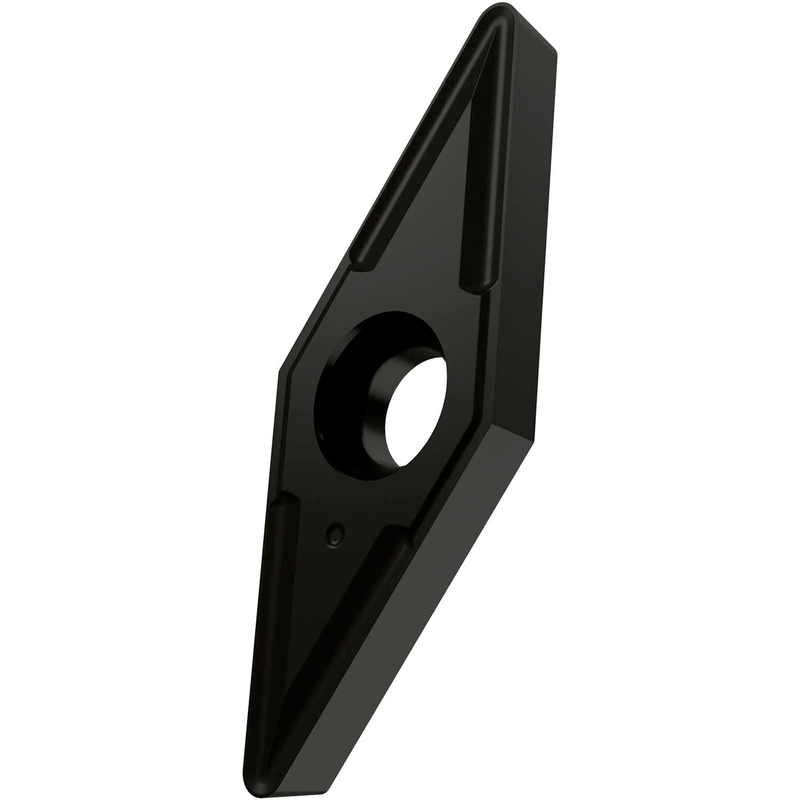

VCGT 2.522-NF2:T7325
VCGT 2.522-NF2:T7325

VCGT 2.522-NF2:T7325

UGC DOR7156425
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10 - M25 et S10 - S25, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-NF2:T7325
Product Name (ISO)VCGT 130308E-NF2:T7325
GradeT7325
Chipbreaker (CBMD)NF2
Product Number7156425
Product FamilyTVCG
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - rhombe 35° angle d'ouverture
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number7156425
EAN3603603165465
File Type Download
VCGT 2.522-NF2:T7325 — Line Drawing PDF Download
