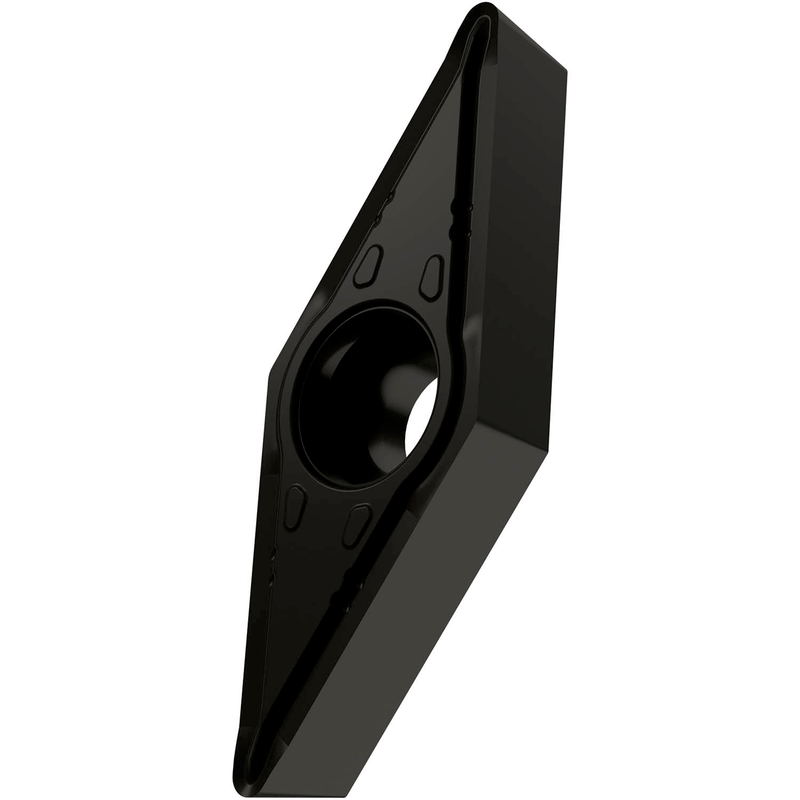

VCMT 221-UR:T7325
VCMT 221-UR:T7325

VCMT 221-UR:T7325

UGC DOR7156426
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.36 CAD - $19.36 CAD
$19.36 CAD
$19.36 CAD - $19.36 CAD
$19.36 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 1/8", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMT 221-UR:T7325
Product Name (ISO)VCMT 110304E-UR:T7325
GradeT7325
Chipbreaker (CBMD)VOUS
Product Number7156426
Product FamilyCVMT
Insert Geometry
Insert DesignGVCA
Insert Shape Code (SC)V - angle inclus rhombique 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156426
EAN3603603165472
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
VCMT 221-UR:T7325 — Line Drawing PDF Download
