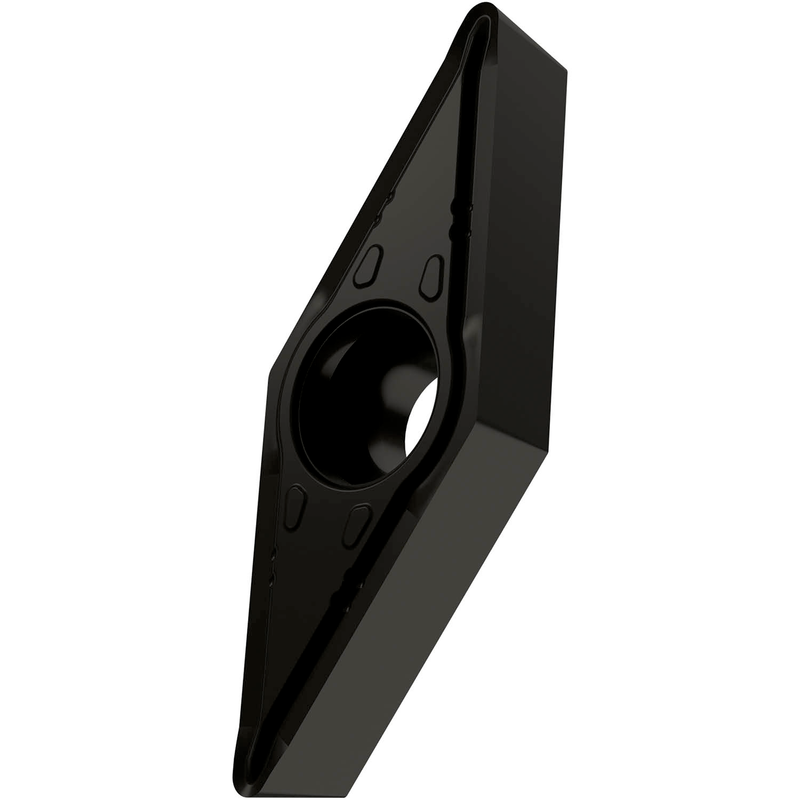

VCMT 331-UR:T7325
VCMT 331-UR:T7325

VCMT 331-UR:T7325

UGC DOR7156429
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.97 CAD - $21.97 CAD
$21.97 CAD
$21.97 CAD - $21.97 CAD
$21.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux UR, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage léger à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMT 331-UR:T7325
Product Name (ISO)VCMT 160404E-UR:T7325
GradeT7325
Chipbreaker (CBMD)VOUS
Product Number7156429
Product FamilyCMTV
Insert Geometry
Insert DesignTVCM
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7156429
EAN3603603165502
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
VCMT 331-UR:T7325 — Line Drawing PDF Download
