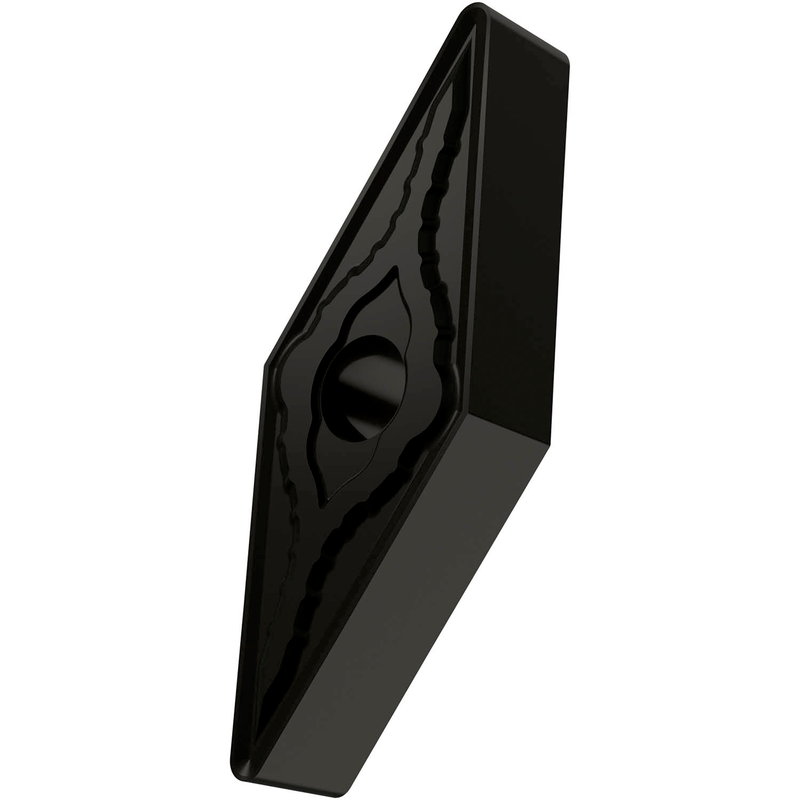

VNMG 331-SM:T7325
VNMG 331-SM:T7325

VNMG 331-SM:T7325

UGC DOR7156437
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 35° avec diamètre du cercle inscrit de 3/8", 3/16" d'épaisseur, rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux SM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage du semi-ébauche à l'ébauche des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VNMG 331-SM:T7325
Product Name (ISO)VNMG 160404E-SM:T7325
GradeT7325
Chipbreaker (CBMD)SM
Product Number7156437
Product FamilyVNMG
Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - angle embrassé 35° rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156437
EAN3603603165588
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
VNMG 331-SM:T7325 — Line Drawing PDF Download
