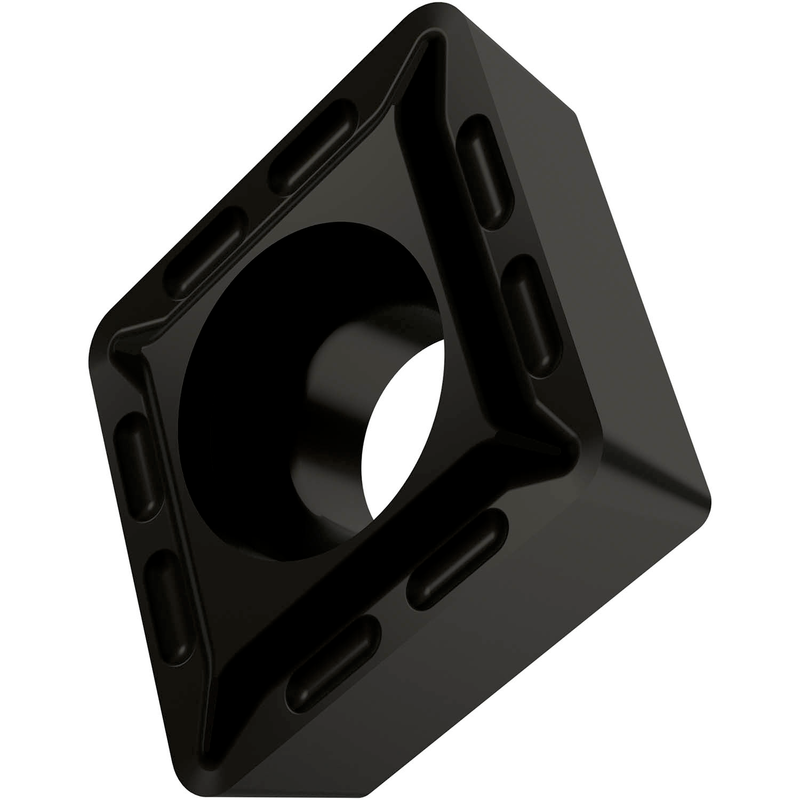

CCMT 21.50.5-FF2:T9325
CCMT 21.50.5-FF2:T9325

CCMT 21.50.5-FF2:T9325

UGC DOR7156703
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.07 CAD - $13.07 CAD
$13.07 CAD
$13.07 CAD - $13.07 CAD
$13.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", 3/32" d'épaisseur, rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-FF2:T9325
Product Name (ISO)CCMT 060202E-FF2:T9325
GradeT9325
Chipbreaker (CBMD)FF2
Product Number7156703
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7156703
EAN3603603166448
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CCMT 21.50.5-FF2:T9325 — Line Drawing PDF Download
