SCMT 32.51-FF2:T9325
SCMT 32.51-FF2:T9325

SCMT 32.51-FF2:T9325

UGC DOR7156750
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.61 CAD - $13.61 CAD
$13.61 CAD
$13.61 CAD - $13.61 CAD
$13.61 CAD

Vendu en lots de : 10

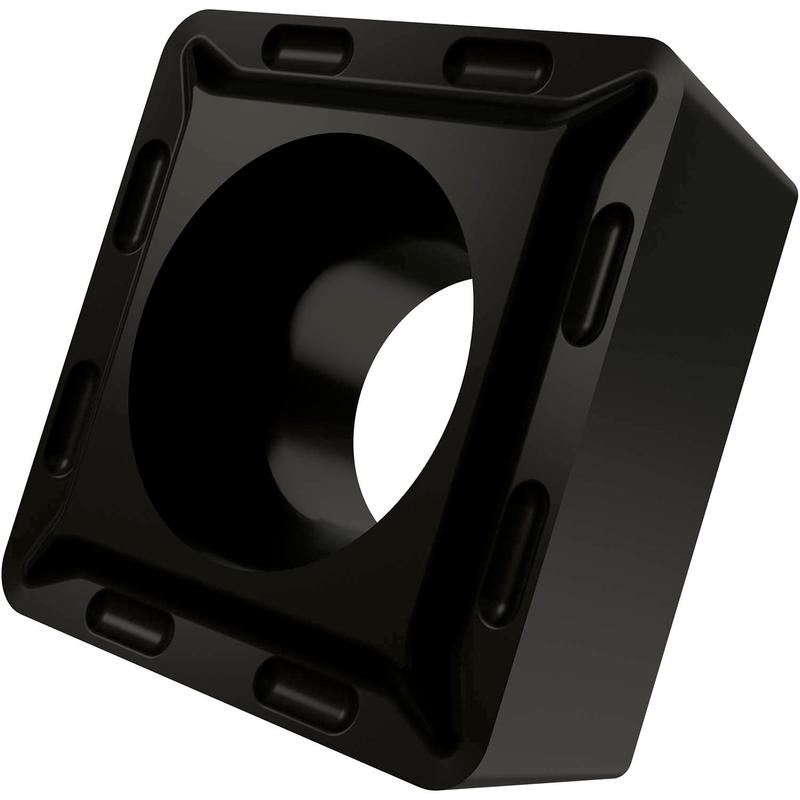

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de pointe de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 32.51-FF2:T9325
Product Name (ISO)SCMT 09T304E-FF2:T9325
GradeT9325
Chipbreaker (CBMD)FF2
Product Number7156750
Product FamilySCMT

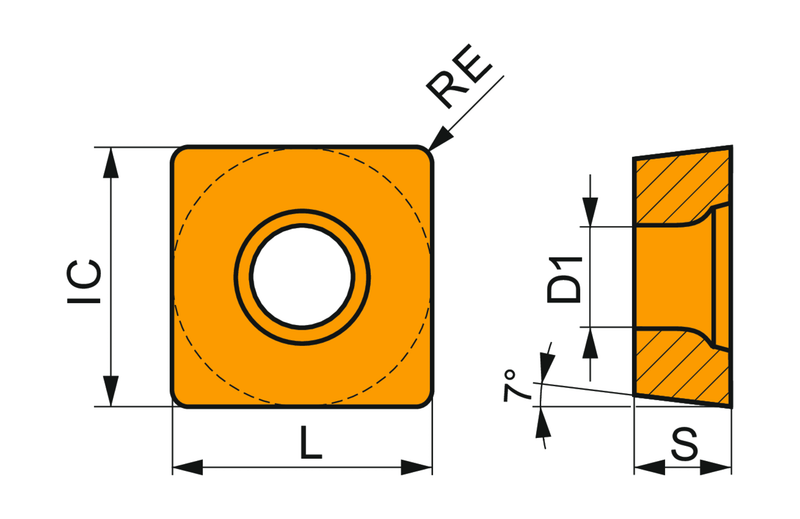

Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156750
EAN3603603166912
File Type Download
SCMT 32.51-FF2:T9325 — Line Drawing PDF Download
