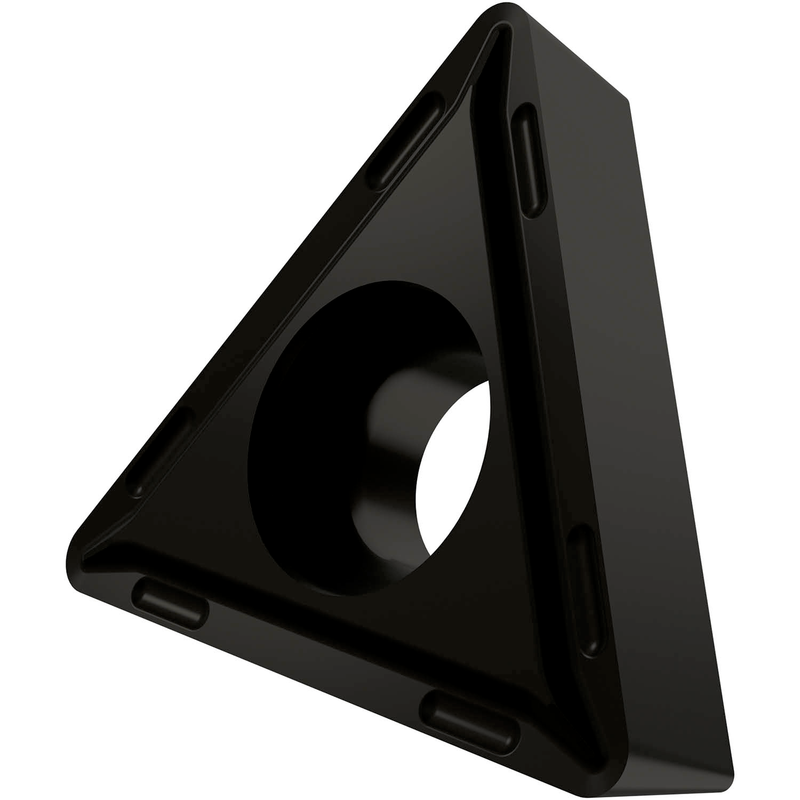

TCMT 1.81.51-FF2:T7325
TCMT 1.81.51-FF2:T7325

TCMT 1.81.51-FF2:T7325

UGC DOR7156758
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.07 CAD - $9.07 CAD
$9.07 CAD
$9.07 CAD - $9.07 CAD
$9.07 CAD

Vendu en lots de : 10

Plaquette positive simple face, triangulaire avec un angle de dépouille de 7°, diamètre du cercle inscrit de 7/32", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.81.51-FF2:T7325
Product Name (ISO)TCMT 090204E-FF2:T7325
GradeT7325
Chipbreaker (CBMD)FF2
Product Number7156758
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156758
EAN3603603166998
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
File Type Download
TCMT 1.81.51-FF2:T7325 — Line Drawing PDF Download
