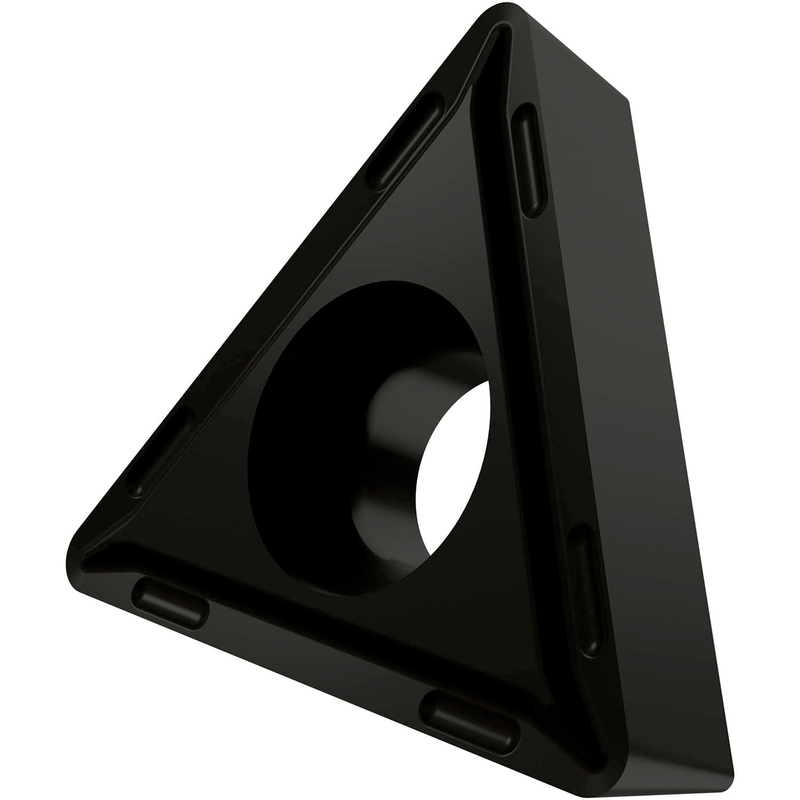

TCMT 21.51-FF2:T9335
TCMT 21.51-FF2:T9335

TCMT 21.51-FF2:T9335

UGC DOR7156764
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.21 CAD - $11.21 CAD
$11.21 CAD
$11.21 CAD - $11.21 CAD
$11.21 CAD

Vendu en lots de : 10

Plaquette positive simple face pour tournage, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FF2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21.51-FF2:T9335
Product Name (ISO)TCMT 110204E-FF2:T9335
GradeT9335
Chipbreaker (CBMD)FF2
Product Number7156764
Product FamilyCCTM
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156764
EAN3603603167056
Material Group Suitability
P — Steel and Cast Steel Usage principal
