TCMT 32.51-FF2:T9335
TCMT 32.51-FF2:T9335

TCMT 32.51-FF2:T9335

UGC DOR7156773
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

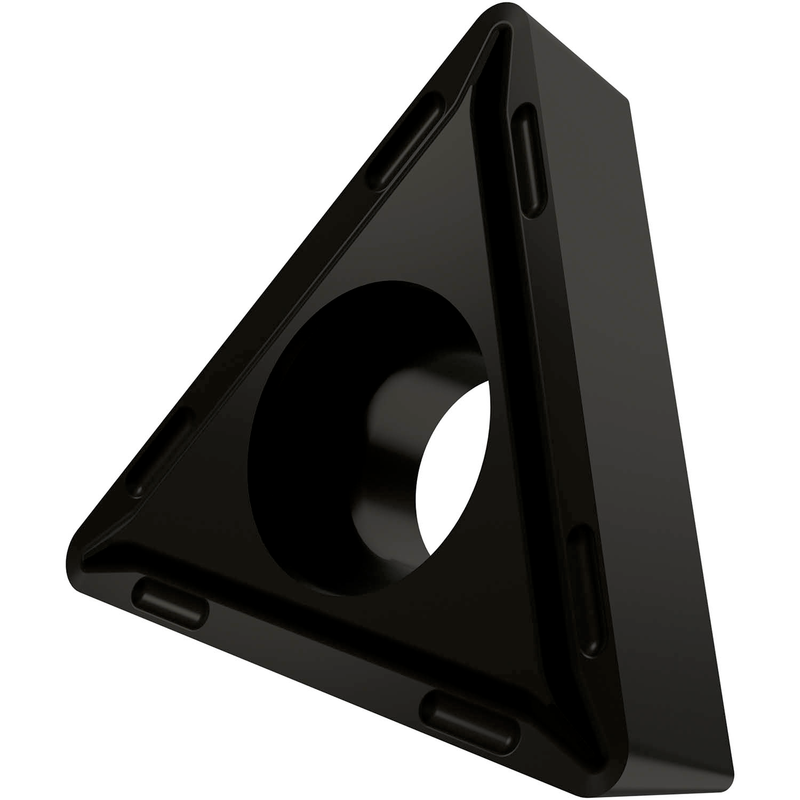

Plaquette positive simple face pour le tournage, triangulaire avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 3/8", une épaisseur de 5/32", un rayon de bec de 1/64" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.51-FF2:T9335
Product Name (ISO)TCMT 16T304E-FF2:T9335
GradeT9335
Chipbreaker (CBMD)FF2
Product Number7156773
Product FamilyTCMT
Insert Geometry
Insert DesignCCTM
Insert Shape Code (SC)T - angle d'ouverture de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7156773
EAN3603603167148
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
TCMT 32.51-FF2:T9335 — Line Drawing PDF Download
