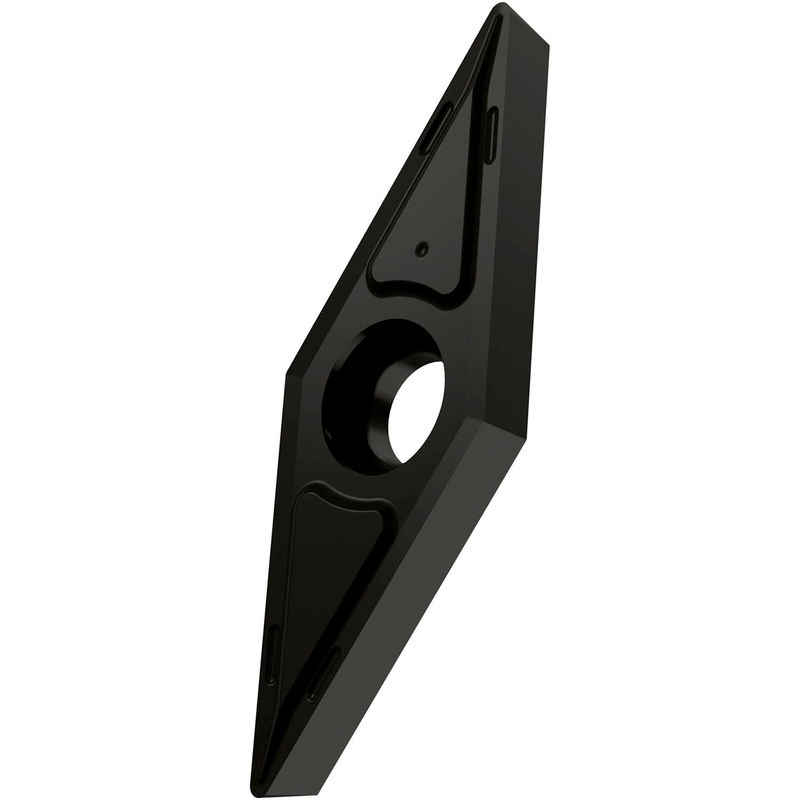

VCGT 2.521-FF2:T7325
VCGT 2.521-FF2:T7325

VCGT 2.521-FF2:T7325

UGC DOR7156791
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux FF2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage de finition à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-FF2:T7325
Product Name (ISO)VCGT 130304E-FF2:T7325
GradeT7325
Chipbreaker (CBMD)FF2
Product Number7156791
Product FamilyVCCG
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle entre-faces 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156791
EAN3603603167322
File Type Download
VCGT 2.521-FF2:T7325 — Line Drawing PDF Download
