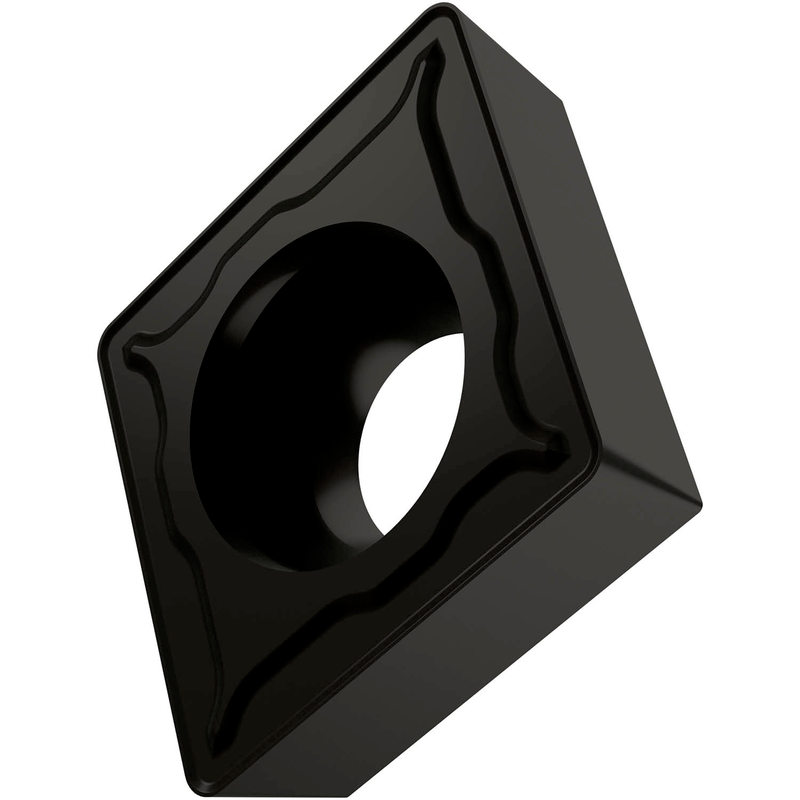

CCMT 32.52-FM2:T9325
CCMT 32.52-FM2:T9325

CCMT 32.52-FM2:T9325

UGC DOR7156874
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 80° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52-FM2:T9325
Product Name (ISO)CCMT 09T308E-FM2:T9325
GradeT9325
Chipbreaker (CBMD)FM2
Product Number7156874
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7156874
EAN3603603167520
File Type Download
CCMT 32.52-FM2:T9325 — Line Drawing PDF Download
