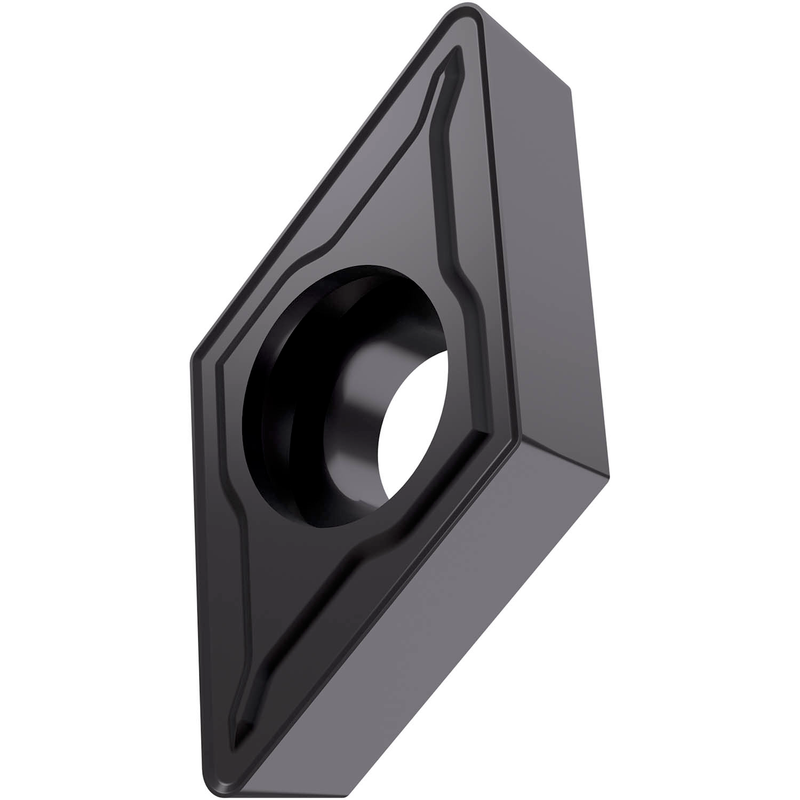

DCMT 21.51-FM2:T6310
DCMT 21.51-FM2:T6310

DCMT 21.51-FM2:T6310

UGC DOR7156880
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.47 CAD - $11.47 CAD
$11.47 CAD
$11.47 CAD - $11.47 CAD
$11.47 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM2, en nuance T6310, un carbure WC-Co à grains extra-fins avec revêtement PVD, dans les plages ISO P01 - P15 et K05 - K20, pour l'usinage fin à moyen des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.51-FM2:T6310
Product Name (ISO)DCMT 070204E-FM2:T6310
GradeT6310
Chipbreaker (CBMD)FM2
Product Number7156880
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus rhomboïde de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.083"
Depth of Cut Max — mm (APMX)2.1 mm
Tool Information
Reference Numbers
EDP Number7156880
EAN3603603167582
File Type Download
DCMT 21.51-FM2:T6310 — Line Drawing PDF Download
