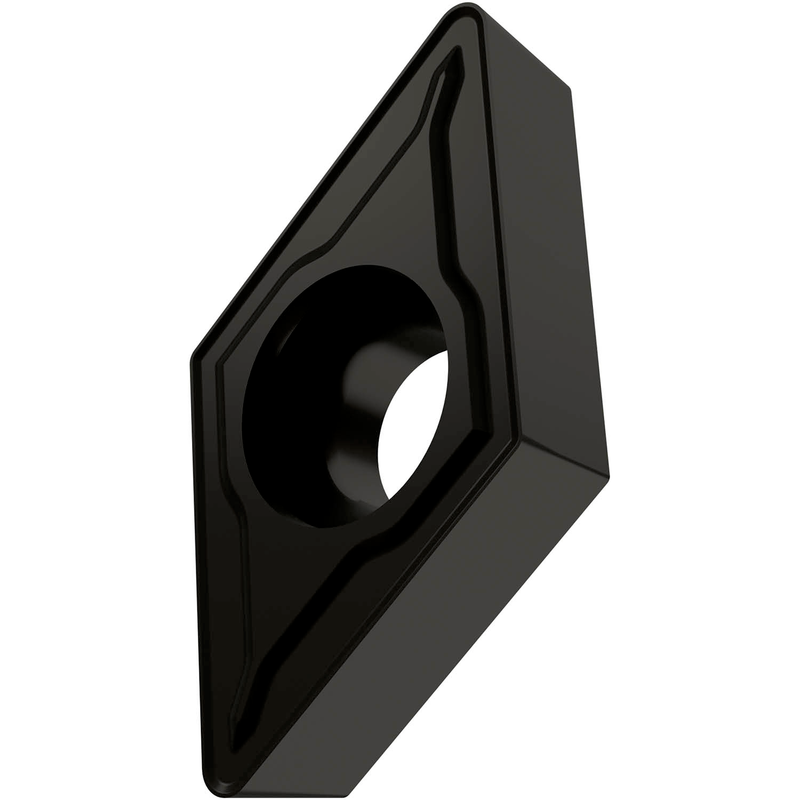

DCMT 32.51-FM2:T7325
DCMT 32.51-FM2:T7325

DCMT 32.51-FM2:T7325

UGC DOR7156886
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.54 CAD - $15.54 CAD
$15.54 CAD
$15.54 CAD - $15.54 CAD
$15.54 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de pointe 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FM2, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-FM2:T7325
Product Name (ISO)DCMT 11T304E-FM2:T7325
GradeT7325
Chipbreaker (CBMD)FM2
Product Number7156886
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.11"
Depth of Cut Max — mm (APMX)2.8 mm
Tool Information
Reference Numbers
EDP Number7156886
EAN3603603167643
File Type Download
DCMT 32.51-FM2:T7325 — Line Drawing PDF Download
