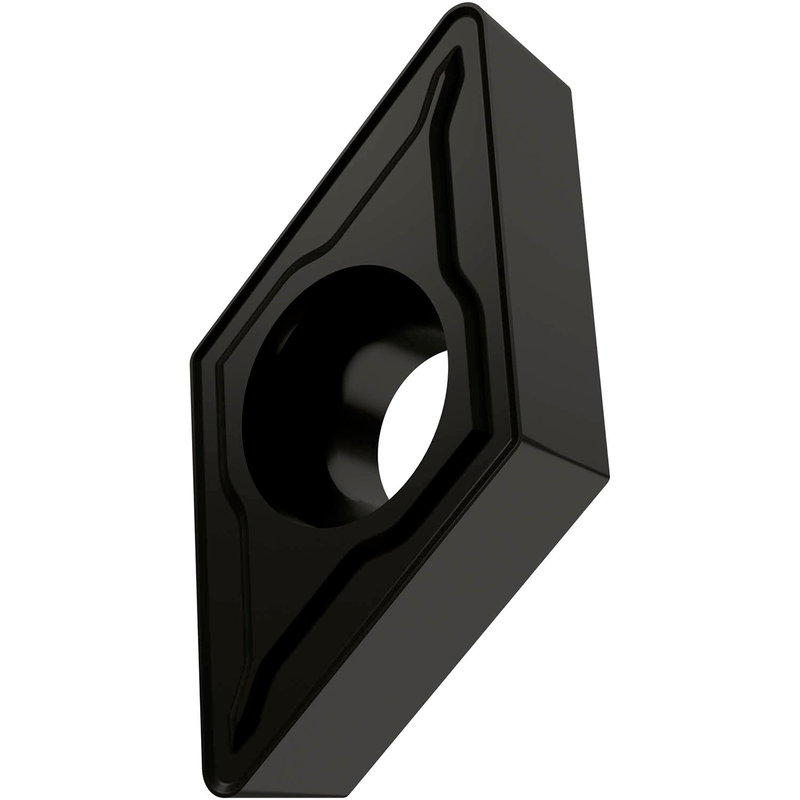

DCMT 432-FM2:T9335
DCMT 432-FM2:T9335

DCMT 432-FM2:T9335

UGC DOR7156902
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.14 CAD - $22.14 CAD
$22.14 CAD
$22.14 CAD - $22.14 CAD
$22.14 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 432-FM2:T9335
Product Name (ISO)DCMT 150408E-FM2:T9335
GradeT9335
Chipbreaker (CBMD)FM2
Product Number7156902
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7156902
EAN3603603167803
File Type Download
DCMT 432-FM2:T9335 — Line Drawing PDF Download
