TCMT 21.51-FM2:T9325
TCMT 21.51-FM2:T9325

TCMT 21.51-FM2:T9325

UGC DOR7156918
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.21 CAD - $11.21 CAD
$11.21 CAD
$11.21 CAD - $11.21 CAD
$11.21 CAD

Vendu en lots de : 10

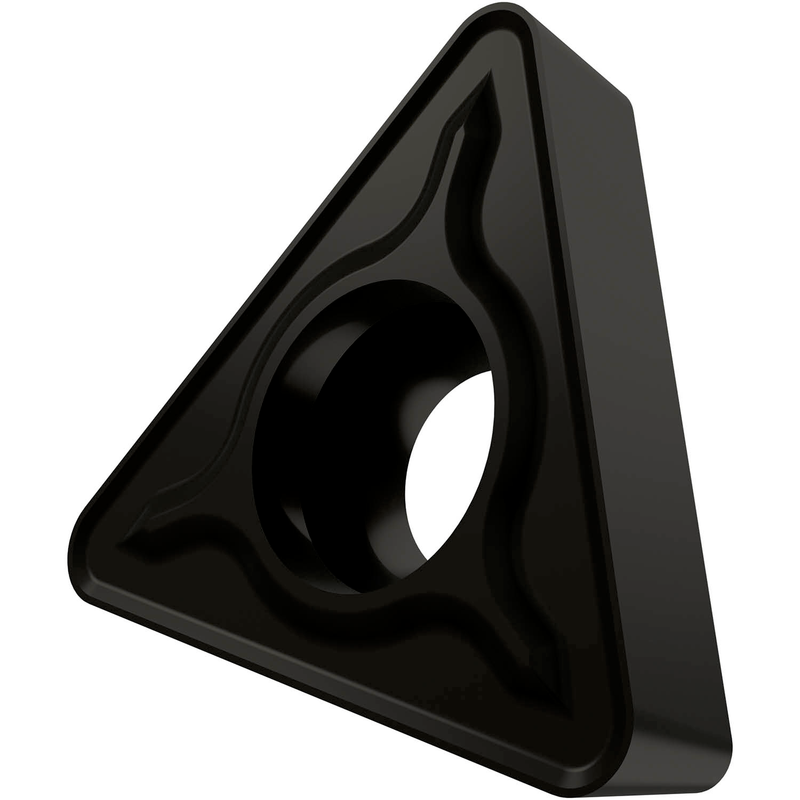

Plaquette positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21.51-FM2:T9325
Product Name (ISO)TCMT 110204E-FM2:T9325
GradeT9325
Chipbreaker (CBMD)FM2
Product Number7156918
Product FamilyCCTM
Insert Geometry
Insert DesignMTCT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7156918
EAN3603603167964
File Type Download
TCMT 21.51-FM2:T9325 — Line Drawing PDF Download
