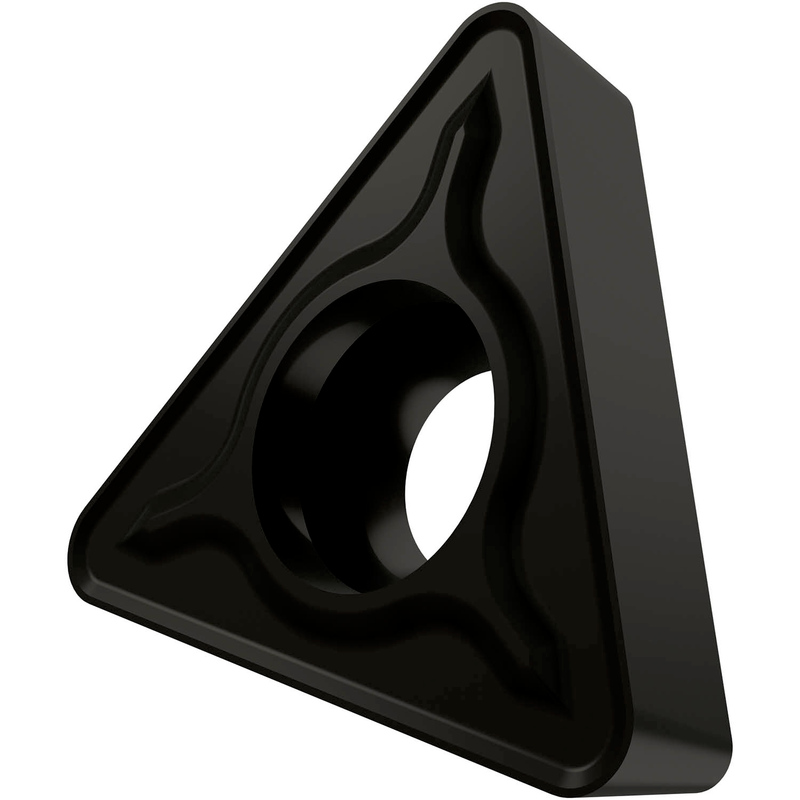

TCMT 32.52-FM2:T9335
TCMT 32.52-FM2:T9335

TCMT 32.52-FM2:T9335

UGC DOR7156925
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

Plaquette positive simple face pour tournage, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-FM2:T9335
Product Name (ISO)TCMT 16T308E-FM2:T9335
GradeT9335
Chipbreaker (CBMD)FM2
Product Number7156925
Product FamilyTCMT
Insert Geometry
Insert DesignCMTC
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7156925
EAN3603603168039
File Type Download
TCMT 32.52-FM2:T9335 — Line Drawing PDF Download
