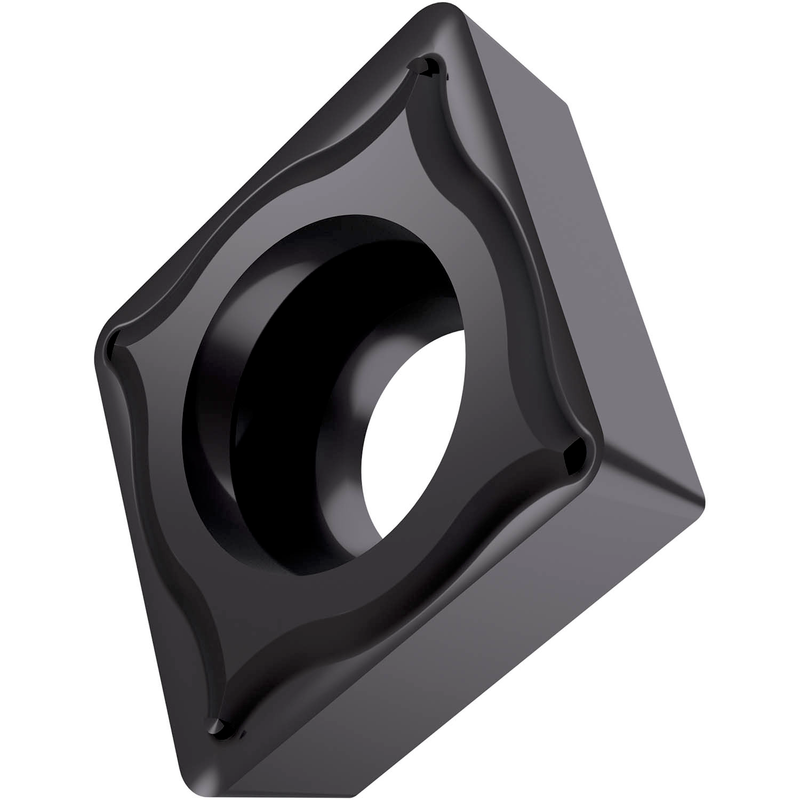

CCGT 21.51-NF1:T6310
CCGT 21.51-NF1:T6310

CCGT 21.51-NF1:T6310

UGC DOR7166215
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.26 CAD - $15.26 CAD
$15.26 CAD
$15.26 CAD - $15.26 CAD
$15.26 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux NF1, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à moyen des aciers, des aciers inoxydables et des super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 21.51-NF1:T6310
Product Name (ISO)CCGT 060204E-NF1:T6310
GradeT6310
Chipbreaker (CBMD)NF1
Product Number7166215
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle compris rhomboédrique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7166215
EAN3603603170025
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
