CCGT 32.51-NF1:T7325
CCGT 32.51-NF1:T7325

CCGT 32.51-NF1:T7325

UGC DOR7167402
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.26 CAD - $18.26 CAD
$18.26 CAD
$18.26 CAD - $18.26 CAD
$18.26 CAD

Vendu en lots de : 10

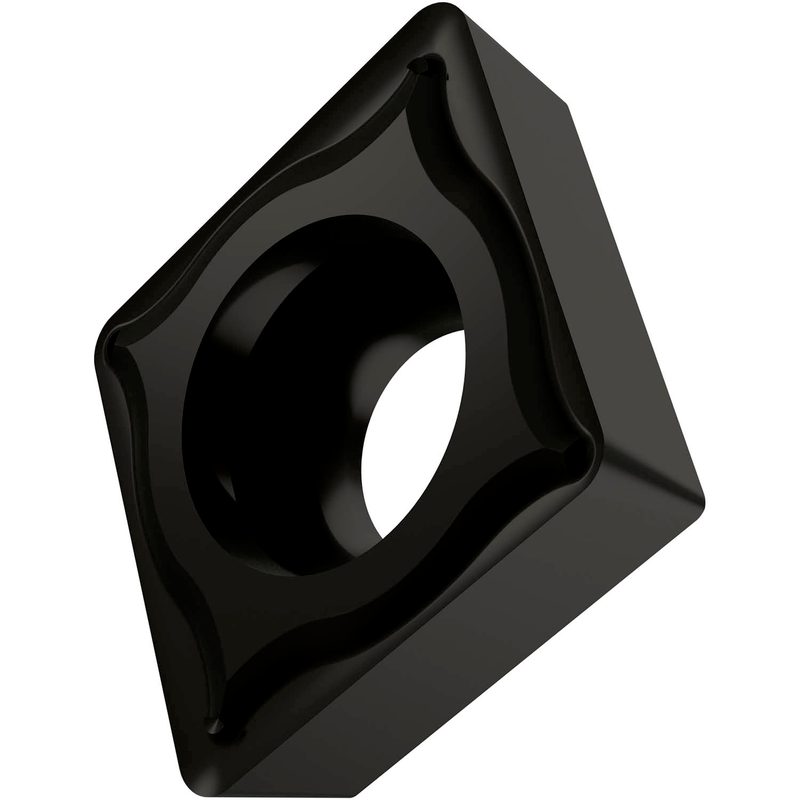

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux NF1, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.51-NF1:T7325
Product Name (ISO)CCGT 09T304E-NF1:T7325
GradeT7325
Chipbreaker (CBMD)NF1
Product Number7167402
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7167402
EAN3603603170094
Material Group Suitability
P — Steel and Cast Steel Usage possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CCGT 32.51-NF1:T7325 — Line Drawing PDF Download
