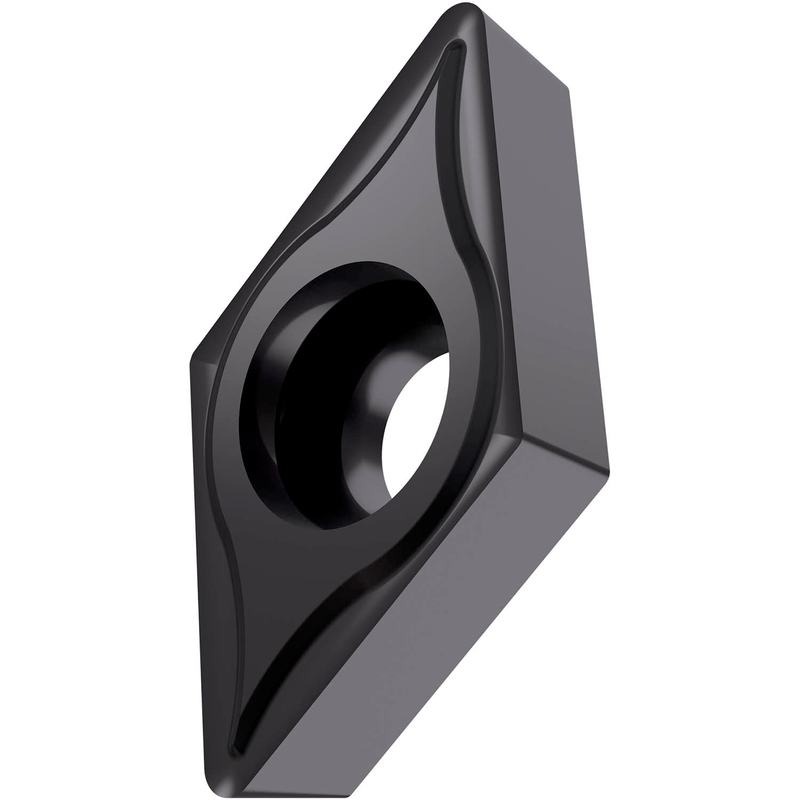

DCGT 32.51-NF1:T6310
DCGT 32.51-NF1:T6310

DCGT 32.51-NF1:T6310

UGC DOR7167407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.21 CAD - $23.21 CAD
$23.21 CAD
$23.21 CAD - $23.21 CAD
$23.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/64" et précision d'indexation selon la classe de tolérance ISO- G, brise-copeaux NF1, en qualité T6310, un carbure WC-Co à grains extra fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à moyen des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.51-NF1:T6310
Product Name (ISO)DCGT 11T304E-NF1:T6310
GradeT6310
Chipbreaker (CBMD)NF1
Product Number7167407
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle inclus rhomboïdal de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7167407
EAN3603603170148
File Type Download
DCGT 32.51-NF1:T6310 — Line Drawing PDF Download
