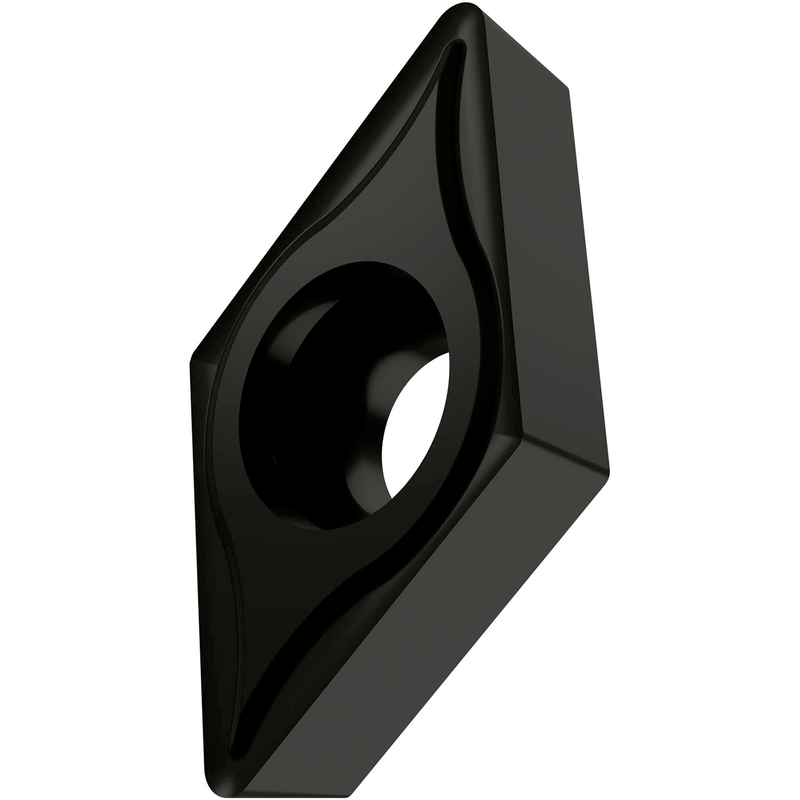

DCGT 32.52-NF1:T7325
DCGT 32.52-NF1:T7325

DCGT 32.52-NF1:T7325

UGC DOR7167411
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.21 CAD - $23.21 CAD
$23.21 CAD
$23.21 CAD - $23.21 CAD
$23.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision d'indexation selon la classe de tolérance ISO G, brise-copeaux NF1, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10-M25 et S10-S25, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.52-NF1:T7325
Product Name (ISO)DCGT 11T308E-NF1:T7325
GradeT7325
Chipbreaker (CBMD)NF1
Product Number7167411
Product FamilyDCGT
Insert Geometry
Insert DesignDDGC
Insert Shape Code (SC)D - angle d'ouverture rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7167411
EAN3603603170186
File Type Download
DCGT 32.52-NF1:T7325 — Line Drawing PDF Download
