SCGT 32.52-NF1:T6310
SCGT 32.52-NF1:T6310

SCGT 32.52-NF1:T6310

UGC DOR7167413
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.33 CAD - $20.33 CAD
$20.33 CAD
$20.33 CAD - $20.33 CAD
$20.33 CAD

Vendu en lots de : 10

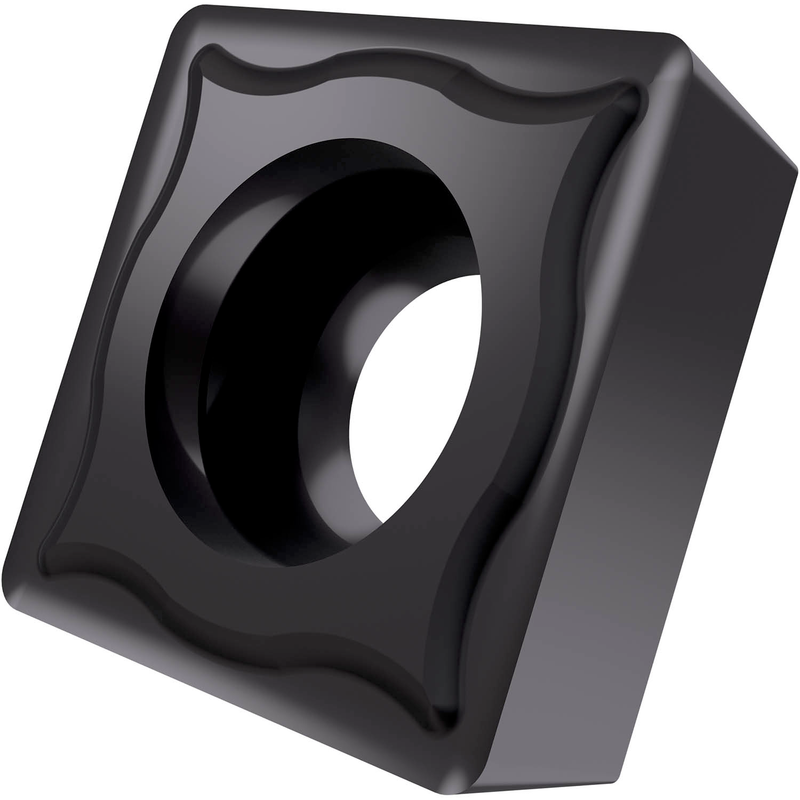

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 7°, diamètre du cercle inscrit de 3/8", 5/32" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux NF1, en nuance T6310, un carbure WC-Co à grains extra-fins avec revêtement PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à moyen des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SCGT 32.52-NF1:T6310
Product Name (ISO)SCGT 09T308E-NF1:T6310
GradeT6310
Chipbreaker (CBMD)NF1
Product Number7167413
Product FamilySCGT

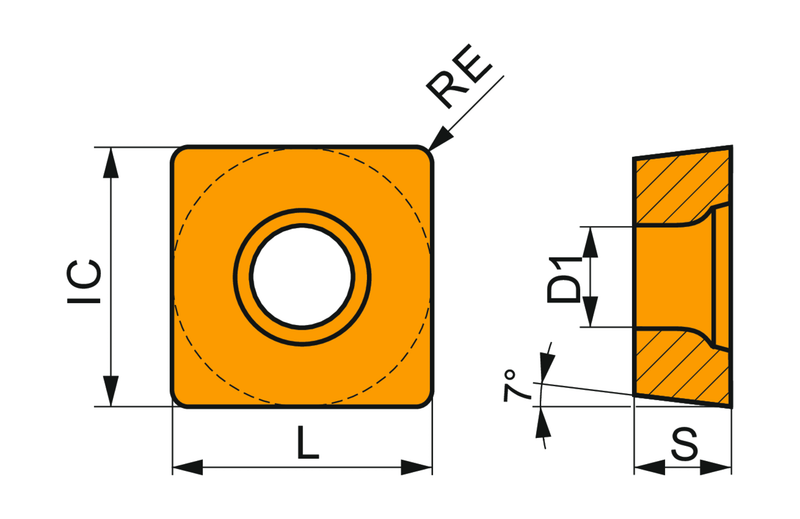

Insert Geometry
Insert DesignSCGT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7167413
EAN3603603170209
File Type Download
SCGT 32.52-NF1:T6310 — Line Drawing PDF Download
