SCGT 432-NF1:T6310
SCGT 432-NF1:T6310

SCGT 432-NF1:T6310

UGC DOR7167416
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.54 CAD - $28.54 CAD
$28.54 CAD
$28.54 CAD - $28.54 CAD
$28.54 CAD

Vendu en lots de : 10

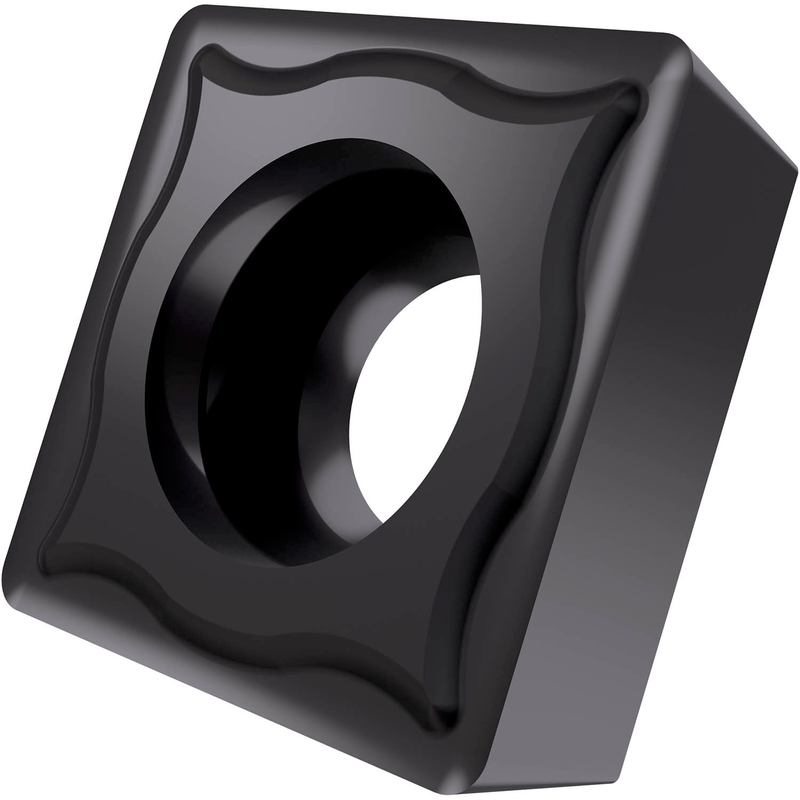

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 0,79 mm et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux NF1, en nuance T6310, un carbure WC-Co à grains extra-fins avec revêtement PVD selon les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à moyen des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SCGT 432-NF1:T6310
Product Name (ISO)SCGT 120408E-NF1:T6310
GradeT6310
Chipbreaker (CBMD)NF1
Product Number7167416
Product FamilySCGT

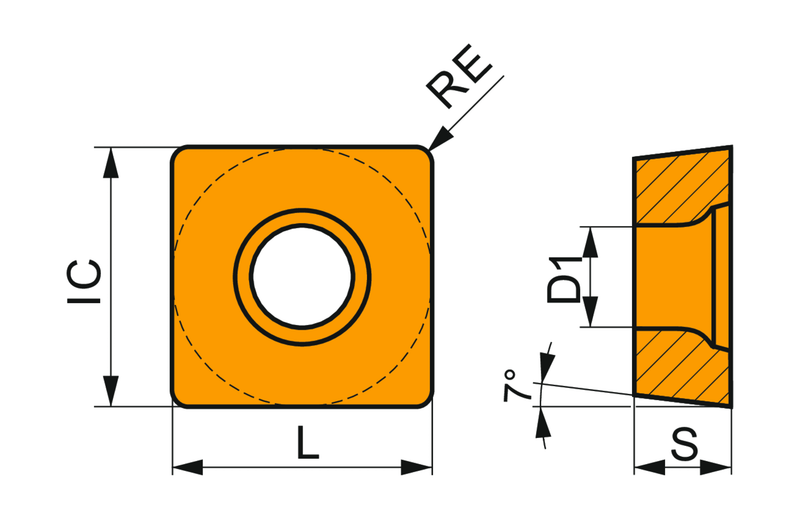

Insert Geometry
Insert DesignSCGT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7167416
EAN3603603170230
File Type Download
SCGT 432-NF1:T6310 — Line Drawing PDF Download
