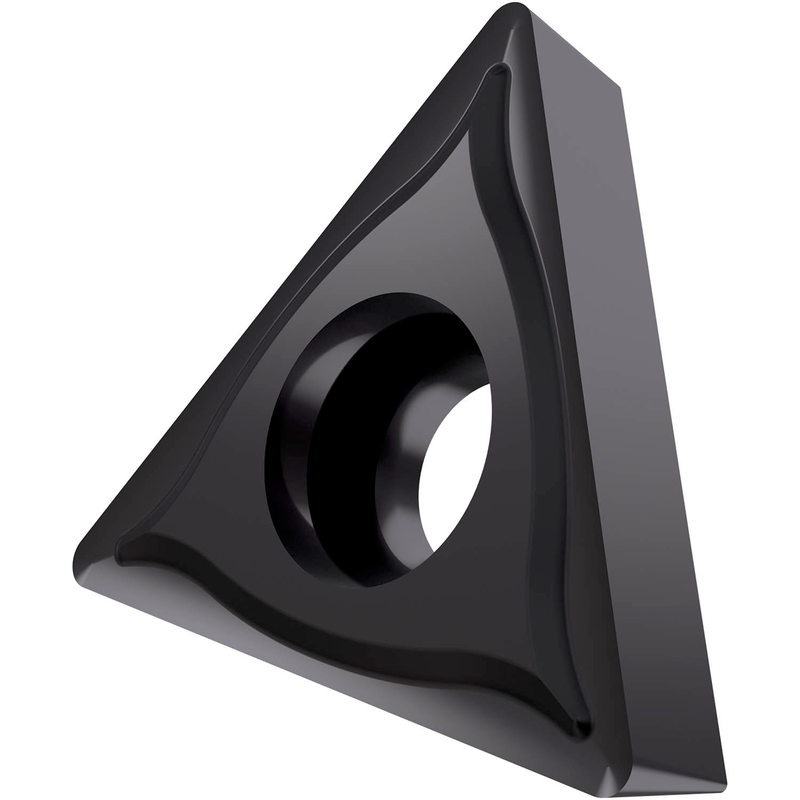

TCGT 21.51-NF1:T6310
TCGT 21.51-NF1:T6310

TCGT 21.51-NF1:T6310

UGC DOR7167419
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.54 CAD - $17.54 CAD
$17.54 CAD
$17.54 CAD - $17.54 CAD
$17.54 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexation selon la classe de tolérance ISO- G, brise-copeaux NF1, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO P01 - P15/M01 - M15 et S01 - S15, pour l'usinage fin à moyen des aciers, des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 21.51-NF1:T6310
Product Name (ISO)TCGT 110204E-NF1:T6310
GradeT6310
Chipbreaker (CBMD)NF1
Product Number7167419
Product FamilyTCGT
Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7167419
EAN3603603170261
File Type Download
TCGT 21.51-NF1:T6310 — Line Drawing PDF Download
