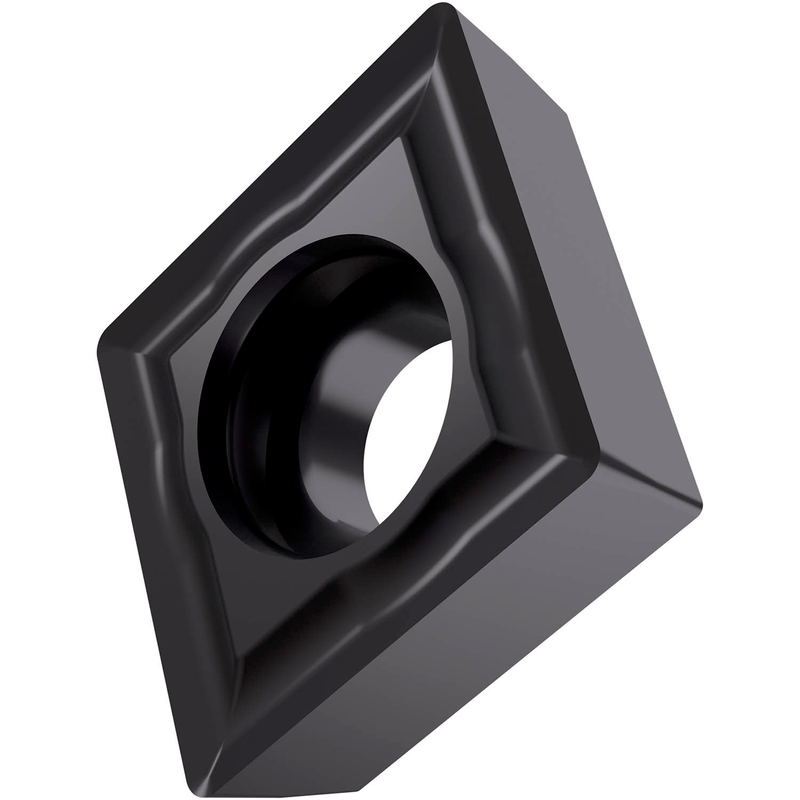

CCMT 21.50.5-NF2:T6310
CCMT 21.50.5-NF2:T6310

CCMT 21.50.5-NF2:T6310

UGC DOR7167423
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-NF2:T6310
Product Name (ISO)CCMT 060202E-NF2:T6310
GradeT6310
Chipbreaker (CBMD)NF2
Product Number7167423
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7167423
EAN3603603170292
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage principal
File Type Download
CCMT 21.50.5-NF2:T6310 — Line Drawing PDF Download
