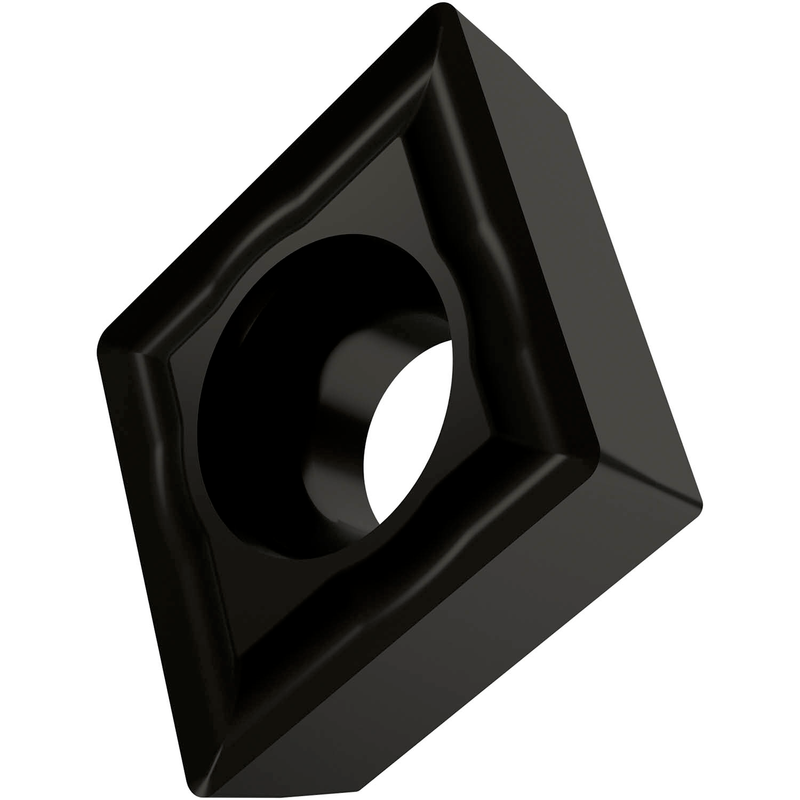

CCMT 21.50.5-NF2:T9325
CCMT 21.50.5-NF2:T9325

CCMT 21.50.5-NF2:T9325

UGC DOR7167426
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 1/4", épaisseur 3/32", rayon de pointe 1/128" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO M10-M30, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.50.5-NF2:T9325
Product Name (ISO)CCMT 060202E-NF2:T9325
GradeT9325
Chipbreaker (CBMD)NF2
Product Number7167426
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7167426
EAN3603603170322
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 21.50.5-NF2:T9325 — Line Drawing PDF Download
