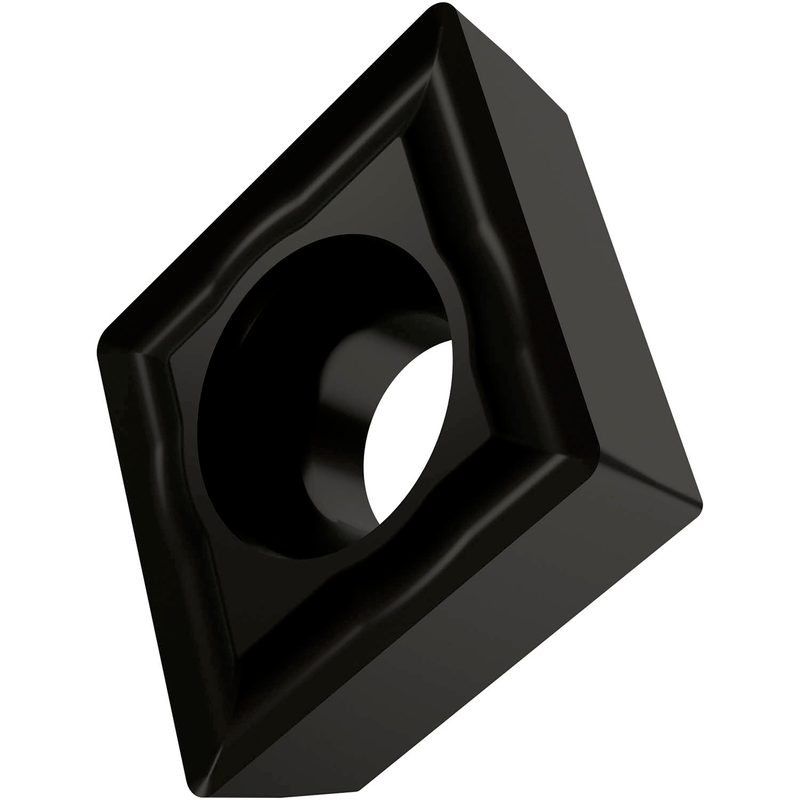

CCMT 21.51-NF2:T9335
CCMT 21.51-NF2:T9335

CCMT 21.51-NF2:T9335

UGC DOR7167453
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.33 CAD - $10.33 CAD
$10.33 CAD
$10.33 CAD - $10.33 CAD
$10.33 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO M15-M40, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.51-NF2:T9335
Product Name (ISO)CCMT 060204E-NF2:T9335
GradeT9335
Chipbreaker (CBMD)NF2
Product Number7167453
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7167453
EAN3603603170391
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 21.51-NF2:T9335 — Line Drawing PDF Download
