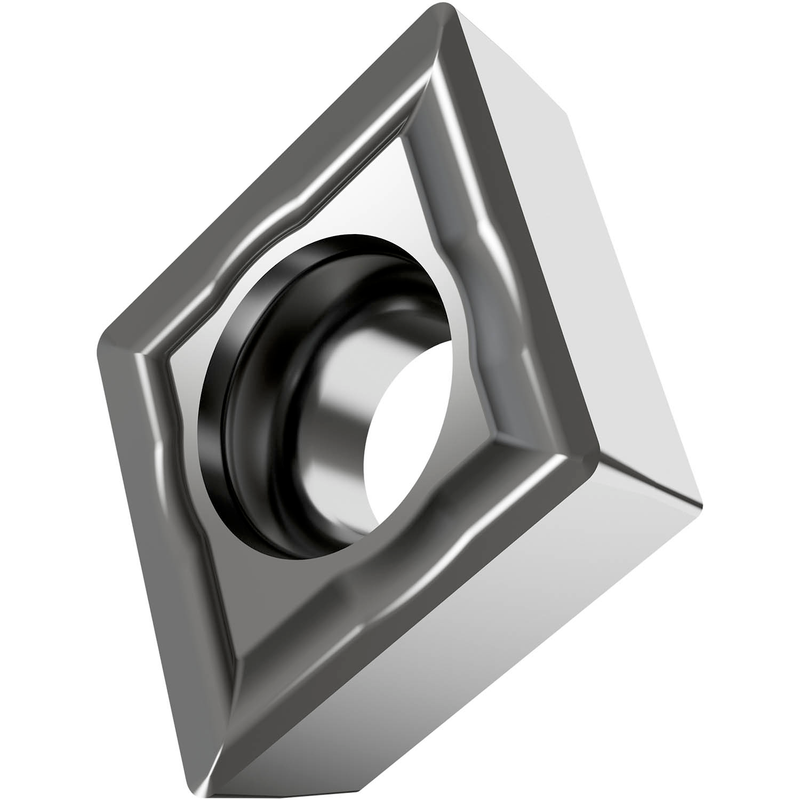

CCMT 32.52-NF2:H07
CCMT 32.52-NF2:H07

CCMT 32.52-NF2:H07

UGC DOR7167465
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.86 CAD - $8.86 CAD
$8.86 CAD
$8.86 CAD - $8.86 CAD
$8.86 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance H07, un carbure WC-Co non revêtu dans la gamme ISO S01-S20, pour l'usinage fin à moyen des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.52-NF2:H07
Product Name (ISO)CCMT 09T308E-NF2:H07
GradeH07
Chipbreaker (CBMD)NF2
Product Number7167465
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7167465
EAN3603603170513
Material Group Suitability
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
File Type Download
CCMT 32.52-NF2:H07 — Line Drawing PDF Download
